| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,820 pcs
|
1820 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

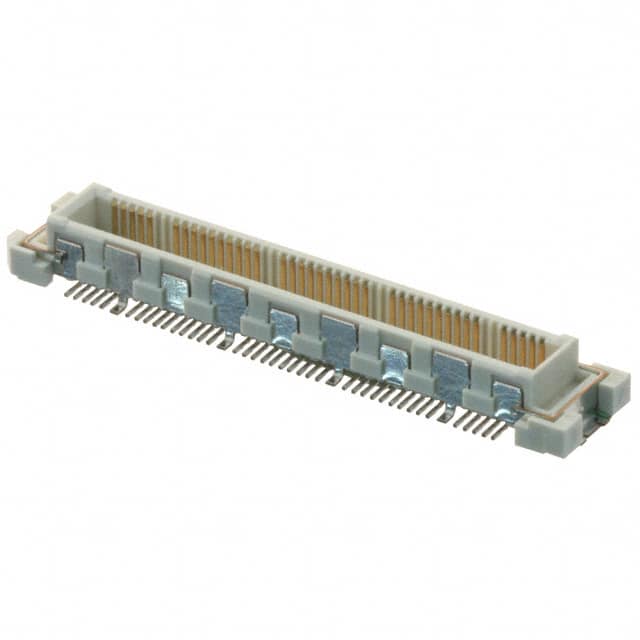

The FX10A-80P/8-SV1(71) is a mezzanine board-to-board connector from Hirose Electric. It is an 80-position header with outer shroud contacts, arranged in 2 rows at a 0.50mm pitch. The connector is designed for surface mount mounting and features gold-plated contacts with a thickness of 4.00µin (0.100µm).
With a height above board of 4.50mm and a mated stacking height of 5mm, this connector is suitable for compact board-to-board stacking applications. Additional features include a board guide, ground plate, and solder retention for reliable mechanical and electrical performance.
RoHS3 compliant and REACH unaffected, the connector is rated with MSL 1 (unlimited). However, compliance data is unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.55 | $6.55 |
| 10+ | $5.57 | $5.57 |
| 25+ | $5.22 | $5.22 |
| 50+ | $4.86 | $4.86 |
| 70+ | $4.61 | $4.61 |
| 280+ | $4.39 | $4.39 |
| 560+ | $4.18 | $4.18 |
| 1,050+ | $4.13 | $4.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.50mm.
Surface mount.
Gold with 4.00µin thickness.
5mm.
