| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

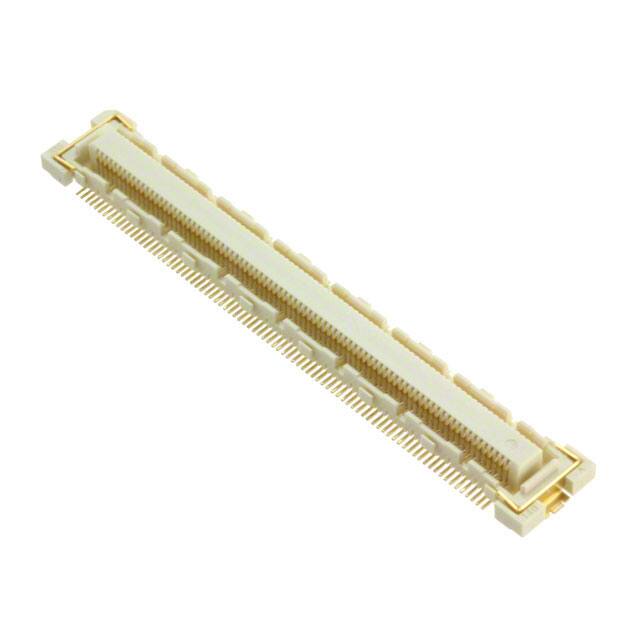

The FX10A-168S-SV is a 168-position receptacle connector from Hirose Electric, designed for board-to-board and mezzanine applications. It features a center strip contact arrangement with 2 rows at a 0.50mm pitch, providing a high-density interconnection solution.
This connector is surface mount compatible with a height above board of 3.20mm, and supports mated stacking heights of 4mm and 5mm. The contacts are finished with gold (4.00µin / 0.100µm) for reliable conductivity. Additional features include board guides for alignment and solder retention tabs for secure mounting during reflow soldering.
The compact design and fine pitch make this connector suitable for space-constrained applications requiring high pin counts, such as in portable electronics, servers, and telecommunications equipment. The surface mount packaging enables automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.68 | $7.68 |
| 10+ | $6.53 | $6.53 |
| 25+ | $6.12 | $6.12 |
| 50+ | $6.11 | $6.11 |
| 250+ | $5.90 | $5.90 |
| 500+ | $5.55 | $5.55 |
| 1,000+ | $4.92 | $4.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FX10A-168S-SV has 168 positions in 2 rows.
The pitch is 0.50mm (0.020").
The connector is surface mount (SMD).
The contacts have a gold finish with a thickness of 4.00µin (0.100µm).
It supports mated stacking heights of 4mm and 5mm.
It includes board guide and solder retention features.
The height above board is 3.20mm (0.126").
