| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

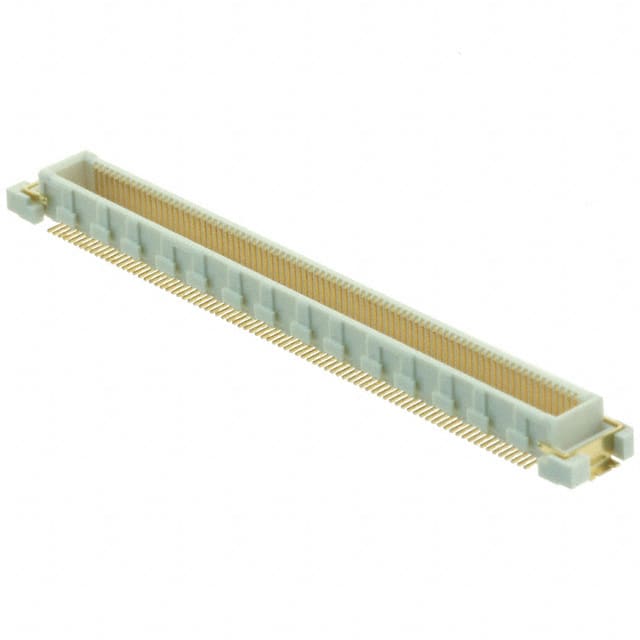

The FX10A-168P-SV(71) is a 168-position, 2-row header connector with outer shroud contacts from Hirose Electric. It features a 0.5mm pitch and is designed for surface mount soldering, making it suitable for high-density board-to-board connections. The connector has a height above board of 3.5mm and supports a mated stacking height of 4mm. Contacts are gold-plated with a thickness of 4µin (0.100µm) for reliable conductivity and corrosion resistance. Additional features include a board guide for alignment and solder retention tabs for secure mounting during reflow. This connector is commonly used in mezzanine stacking applications where space is limited and high pin count is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.86 | $6.86 |
| 10+ | $5.83 | $5.83 |
| 25+ | $5.47 | $5.47 |
| 50+ | $5.20 | $5.20 |
| 100+ | $4.95 | $4.95 |
| 250+ | $4.64 | $4.64 |
| 500+ | $4.42 | $4.42 |
| 1,000+ | $4.35 | $4.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
168 positions.
0.5mm (0.020").
Surface mount.
Gold with a thickness of 4µin (0.100µm).
2 rows.
3.5mm (0.138").
Board guide and solder retention.
