| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

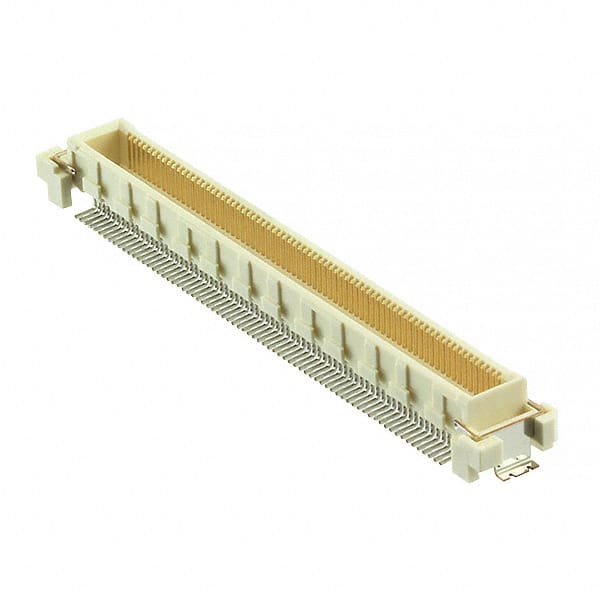

The Hirose Electric FX10A-144P-SV1(71) is a 144-position header connector featuring outer shroud contacts and a 0.50mm pitch. This surface mount connector is designed for board-to-board mezzanine applications, providing a mated stacking height of 5mm. The connector includes board guide and solder retention features for reliable assembly.
With gold contact finish of 4.00µin (0.100µm), the FX10A-144P-SV1(71) ensures reliable signal integrity in dense interconnect designs. The 2-row configuration and 4.50mm height above board make it suitable for compact electronic assemblies requiring high pin counts.
This connector is part of the FX10A series from Hirose Electric, a leading manufacturer of precision connectors. It is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions for storage and handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.86 | $5.86 |
| 10+ | $4.99 | $4.99 |
| 25+ | $4.67 | $4.67 |
| 50+ | $4.44 | $4.44 |
| 100+ | $4.23 | $4.23 |
| 250+ | $3.96 | $3.96 |
| 500+ | $3.77 | $3.77 |
| 1,000+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 144 positions arranged in 2 rows.
The pitch is 0.50mm (0.020").
It is a surface mount connector.
The mated stacking height is 5mm.
The contacts have a gold finish with 4.00µin (0.100µm) thickness.
