| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,680 pcs
|
1680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

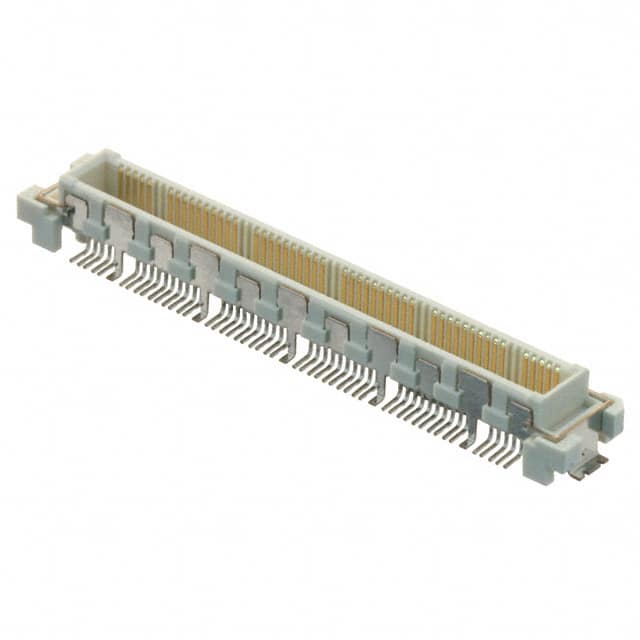

The FX10A-100P/10-SV1(71) is a 100-position header connector with outer shroud contacts designed for board-to-board mezzanine applications. It features a 0.50mm (0.020") pitch across 2 rows, enabling high-density interconnections in compact electronic assemblies.
The connector is surface mount with a height above board of 0.177" (4.50mm) and a mated stacking height of 5mm. Contacts are gold plated with 4.00µin (0.100µm) thickness for reliable signal integrity. Additional features include a board guide, ground plate, and solder retention to ensure secure mounting and grounding.
This connector is suitable for use in consumer electronics, telecommunications, and industrial equipment where space is limited. Compliance data (RoHS, MSL 1, REACH) is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.82 | $6.82 |
| 10+ | $5.90 | $5.90 |
| 25+ | $5.53 | $5.53 |
| 60+ | $5.19 | $5.19 |
| 120+ | $4.95 | $4.95 |
| 300+ | $4.64 | $4.64 |
| 540+ | $4.45 | $4.45 |
| 1,020+ | $4.40 | $4.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions in 2 rows.
0.50mm (0.020").
Surface mount.
Gold with 4.00µin (0.100µm) thickness.
5mm.
Board guide, ground plate, solder retention.
