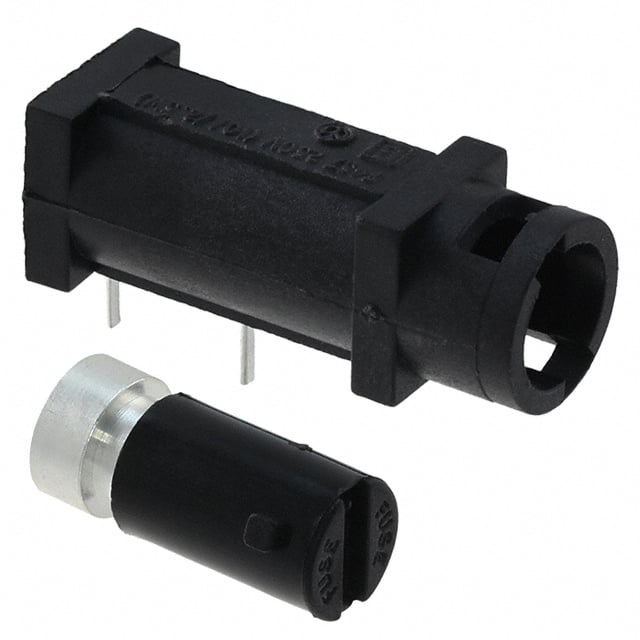

FX0457 This is a through-hole cartridge fuse holder for 5x20mm fuses, rated 10A (16A UL) at 250V AC. It features PC pin termination and horizontal orientation.
Mfr Part #:

FX0457

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
This is a through-hole cartridge fuse holder for 5x20mm fuses, rated 10A (16A UL) at 250V AC. It features PC pin termination and horizontal orientation.
✓ Total Stock: 750 pcs
$ Price Range: $9.97 - $20.45

FX0457 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
750 pcs
On Request
750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FX0457 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Insulation Resistance
Lead Spacing
Mounting Type
Number of Circuits
Operating Temperature
Orientation
Termination Style
Voltage
View Similar Products (0)

FX0457 Description

Short technical summary and product information.

The FX0457 is a through-hole PCB mount fuse holder from Bulgin Components, designed for 5mm x 20mm cartridge fuses. It is rated for 10A continuous current (16A UL) at 250V AC. The holder features PC pin termination and horizontal orientation, making it suitable for compact PCB layouts.



Electrical characteristics include a contact resistance less than 10 mΩ, insulation resistance greater than 10 MΩ at 500V DC, and AC breakdown voltage exceeding 2 kV. Maximum power dissipation is 2.5W at 23°C, with an operating temperature range of -20°C to +85°C.



Constructed from flame retardant Nylon UL94V-0, the holder uses brass tags and phosphor bronze clips with tin/nickel plating. It is designed for protection categories PC1, PC2, and PC3 as per the datasheet.

FX0457 Quick Information

Product Type: Fuse Holder
Series: FX0457
Canonical Name: Fuse Holder for 5mm x 20mm Cartridge Fuse, Through Hole, PC Pin, Horizontal, 10A (16A UL), 250V
Subcategory: Cartridge Fuse Holder

FX0457 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FX0457 Estimated Pricing

Qty Low High
1+ $20.45 $20.45
5+ $15.88 $15.88
10+ $14.12 $14.12
50+ $12.51 $12.51
100+ $10.91 $10.91
200+ $9.97 $9.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

FX0457 Features

  • Through hole PC pin termination.
  • Rated for 10A (16A UL) at 250V AC.
  • Accepts 5mm x 20mm cartridge fuses.
  • Flame retardant nylon UL94V-0 molding.
  • Horizontal orientation for PCB mounting.

FX0457 Applications

  • Ideal for PCB protection in power supplies.
  • Used in industrial control panels.
  • Suitable for consumer electronics fuse protection.
  • Applicable in telecommunications equipment.

FX0457 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the FX0457 fuse holder?

The FX0457 is rated for 10A continuous, with a UL rating of 16A.

What is the voltage rating?

250V AC.

What size fuse does it accept?

5mm x 20mm cartridge fuses.

What is the mounting type and termination?

Through Hole mounting with PC Pin termination, horizontal orientation.

What is the operating temperature range?

-20°C to +85°C.

What contact materials are used?

Brass tags and Phosphor Bronze clips.

Is the FX0457 RoHS compliant?

Listed as RoHS3 Compliant, but unverified.
