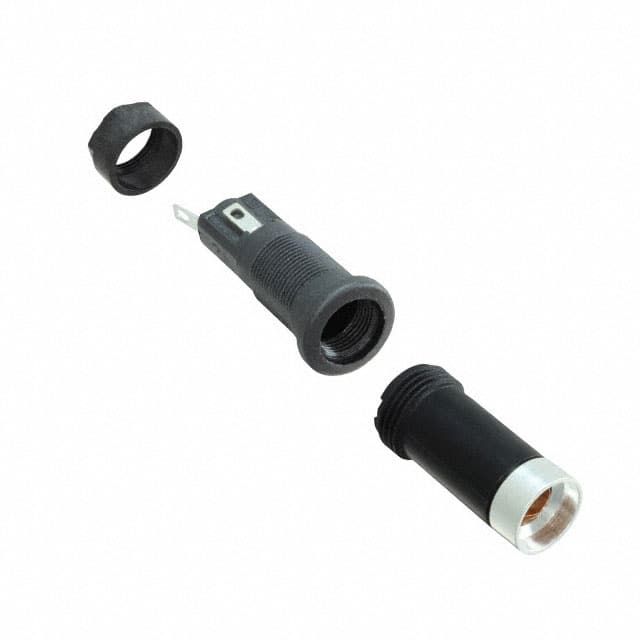

FX0454 Panel mount fuseholder for 5x20mm cartridge fuses, rated 10A at 250V AC, with solder lug terminals and captive drawer carrier.
Mfr Part #:

FX0454

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
Panel mount fuseholder for 5x20mm cartridge fuses, rated 10A at 250V AC, with solder lug terminals and captive drawer carrier.
✓ Total Stock: 4 pcs
$ Price Range: $4.06 - $9.99

FX0454 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FX0454 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Insulation Resistance
Mounting Type
Number of Circuits
Operating Temperature
Tape & Reel
Termination Style
Voltage
View Similar Products (0)

FX0454 Description

Short technical summary and product information.

The FX0454 from Bulgin Components is a panel mount fuseholder designed for 5x20mm cartridge fuses. It is rated for 10A continuous current at 250V AC and features a captive drawer fuse carrier for easy fuse replacement. The fuseholder is constructed with a nylon housing (UL94V-0 rated) and brass contacts with silver finish for reliable electrical performance. It offers protection category PC3, meaning live parts are inaccessible to the IEC 60529 1mm test wire. The solder lug termination style ensures secure connections. The product operates over a temperature range of -20°C to +85°C and has a maximum power dissipation of 2.5W at 23°C ambient. It is RoHS3 compliant.

FX0454 Quick Information

Product Type: Fuseholder
Series: FX04
Canonical Name: Fuseholder for 5mm x 20mm Cartridge Fuse, 10A, 250V, Panel Mount, Solder Lug
Subcategory: Panel Mount Fuseholder

FX0454 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FX0454 Estimated Pricing

Qty Low High
1+ $9.99 $9.99
5+ $6.18 $6.18
10+ $5.79 $5.79
50+ $5.14 $5.14
100+ $4.89 $4.89
200+ $4.25 $4.25
1,000+ $4.11 $4.11
2,600+ $4.06 $4.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

FX0454 Features

  • Panel mount for 5x20mm cartridge fuses.
  • Rated 10A continuous current at 250V AC.
  • Captive drawer fuse carrier for easy access.
  • Solder lug termination for secure connections.
  • Nylon housing with UL94V-0 flammability rating.

FX0454 Applications

  • Ideal for industrial control panels.
  • Used in power supply units requiring fuse protection.
  • Suitable for equipment requiring touchproof fuseholder.

FX0454 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the current rating of the Bulgin FX0454 fuseholder?

10 A continuous.

What is the voltage rating of the FX0454?

250 V AC maximum.

What size fuse does the FX0454 accept?

5mm x 20mm cartridge fuses.

What is the operating temperature range of the FX0454?

-20°C to +85°C.
