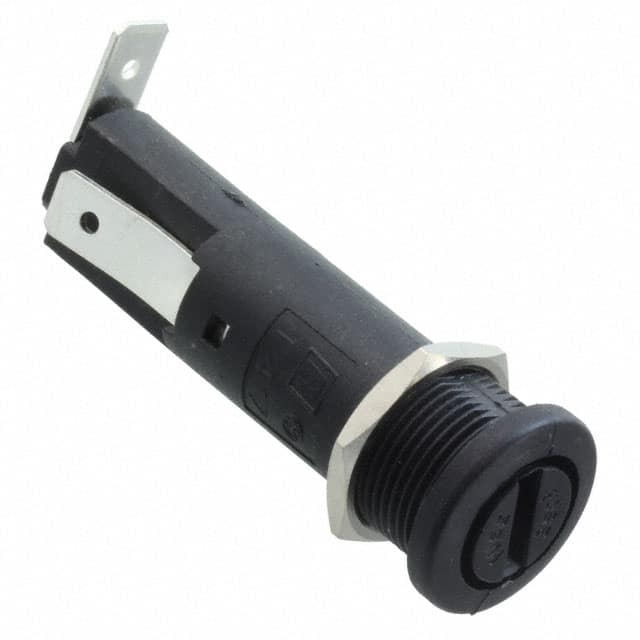

FX0417 Panel mount fuse holder for 3AG (1/4" x 1-1/4") cartridge fuses. Rated 20A at 250V with solder lug termination and silver-plated brass contacts.
Mfr Part #:

FX0417

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
Panel mount fuse holder for 3AG (1/4" x 1-1/4") cartridge fuses. Rated 20A at 250V with solder lug termination and silver-plated brass contacts.
✓ Total Stock: 1 pcs
$ Price Range: $5.32

FX0417 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FX0417 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Lead Style
Mounting Type
Number of Circuits
Termination Style
Voltage
View Similar Products (0)

FX0417 Description

Short technical summary and product information.

The FX0417 is a panel mount fuse holder from Bulgin Components designed for use with 3AG (1/4" x 1-1/4") and SFE-20 cartridge fuses. It is rated for 20A at 250V and features a single circuit configuration. The holder accepts fuses with a diameter of 6.35mm and length of 32mm.



Termination is via solder lugs, and the contacts are made of brass with a silver finish for reliable electrical performance. The holder is designed for panel mounting, making it suitable for applications where a secure and accessible fuse installation is required.



This fuse holder is intended for use in circuit protection applications where overcurrent protection is needed. The panel mount design allows for easy fuse replacement from the front of the panel.

FX0417 Quick Information

Product Type: Fuse Holder
Canonical Name: Fuse Holder for 3AG 1/4" x 1-1/4" Cartridge Fuse, 20A 250V, Panel Mount, Solder Lug
Subcategory: Panel Mount Fuse Holder

FX0417 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FX0417 Estimated Pricing

Qty Low High
100+ $5.32 $5.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

FX0417 Features

  • Rated 20A at 250V AC/DC.
  • Accepts 6.35mm x 32mm cartridge fuses.
  • Panel mount with solder lug termination.
  • Silver-plated brass contacts.
  • Single circuit fuse holder design.

FX0417 Applications

  • Overcurrent protection in power supplies.
  • Industrial control panel fuse mounting.
  • Equipment requiring front-panel fuse access.
  • General purpose circuit protection.

FX0417 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the FX0417 fuse holder?

The FX0417 is rated for 20 A.

What is the voltage rating of the FX0417?

The voltage rating is 250 V.

What type of fuse does the FX0417 accept?

It accepts 3AG (1/4" x 1-1/4") and SFE-20 cartridge fuses with a diameter of 6.35mm and length of 32mm.

What is the mounting style of the FX0417?

The FX0417 is a panel mount fuse holder.

What termination style does the FX0417 use?

It uses solder lug termination.
