| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
970 pcs
|
970 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Terminal Type | |
| Termination Style | |
| Voltage |

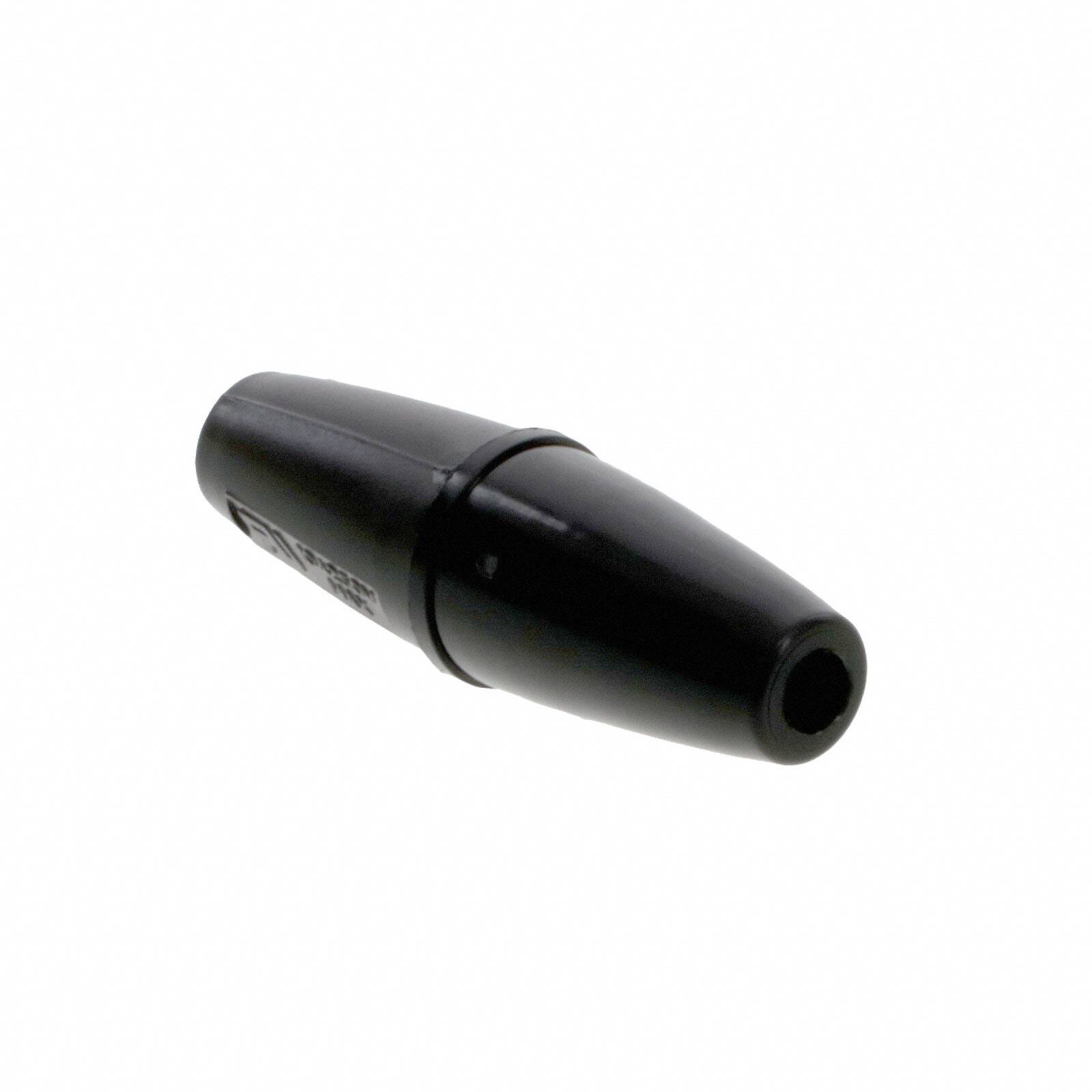

The FX0380/BK is a free-hanging inline fuseholder designed for 5mm x 20mm cartridge fuses. It is rated for 10A continuous current at 50V nominal (250V when inaccessible inside equipment). Termination is via wire leads with screw terminals, accepting up to 1mm² conductor. The body is molded from black Nylon 6 with UL94V-0 flammability rating, and contacts are brass with nickel plating. The fuseholder is UL approved for the black version. Operating temperature range is -20°C to +90°C. Insulation resistance exceeds 10^5 MΩ at 500V DC, and contact resistance is less than 10 mΩ. The screw tightening torque is 0.226 Nm. This holder is suitable for applications requiring a simple inline fuse protection solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.76 | $15.76 |
| 5+ | $9.51 | $9.51 |
| 10+ | $8.64 | $8.64 |
| 50+ | $7.65 | $7.65 |
| 100+ | $7.64 | $7.64 |
| 300+ | $7.06 | $7.06 |
| 600+ | $6.99 | $6.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10A.
50V nominal (250V when inaccessible inside equipment).
5mm x 20mm cartridge fuses.
-20°C to +90°C.
Brass with nickel plating.
Yes, UL approved for the black version.
Wire leads with screw terminals.
