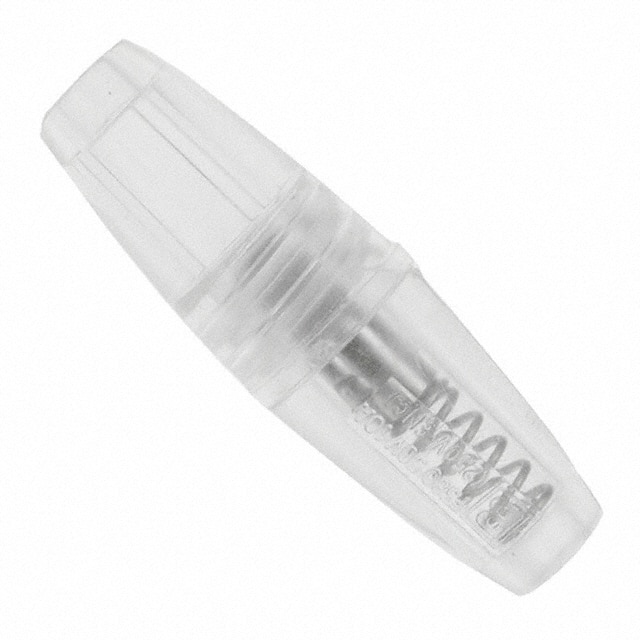

FX0380 Bulgin FX0380 is an in-line fuseholder for 5x20mm cartridge fuses, rated 10A at 50V. It features screw terminals and a free-hanging mounting style.
Mfr Part #:

FX0380

Available from 3 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
Bulgin FX0380 is an in-line fuseholder for 5x20mm cartridge fuses, rated 10A at 50V. It features screw terminals and a free-hanging mounting style.
✓ Total Stock: 722 pcs
$ Price Range: $8.36 - $9.82

FX0380 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
630 pcs
On Request
630 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
88 pcs
On Request
88 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 4 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FX0380 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Body Material
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Industrial Grade
Insulation Resistance
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Circuits
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

FX0380 Description

Short technical summary and product information.

The Bulgin FX0380 is a single-circuit in-line fuseholder designed for 5x20mm cartridge fuses. It is rated for 10A at 50V and features screw terminal connections. The body is made from clear polybutene (UL94 HB) or black nylon 6 (UL94 V-0), with brass contacts finished in nickel. The holder accepts a maximum cable size of 1 mm² and has a screw tightening torque of 0.226 Nm.



This fuseholder is suitable for free-hanging (in-line) installation and operates over a temperature range of -20°C to +90°C. It provides protection category PC1 and has a contact resistance of less than 10 mΩ, insulation resistance greater than 10⁵ MΩ at 500V DC, and a dielectric withstand voltage of 2 kV for 1 minute at 50 Hz. The product is RoHS compliant.

FX0380 Quick Information

Product Type: Fuseholder
Series: FX
Canonical Name: Bulgin FX0380 In-Line Fuseholder for 5x20mm Cartridge Fuse
Subcategory: In-Line Fuseholder

FX0380 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FX0380 Estimated Pricing

Qty Low High
1+ $9.82 $9.82
10+ $9.26 $9.26
50+ $8.69 $8.69
100+ $8.36 $8.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

FX0380 Features

  • In-line fuseholder for 5x20mm cartridge fuses.
  • Rated 10A at 50V DC operation.
  • Screw terminal connections for secure wiring.
  • Accepts cable up to 1 mm² conductor size.
  • RoHS compliant and PC1 protection rated.

FX0380 Applications

  • Protect circuits in automotive and marine applications.
  • Ideal for in-line fuse protection in low-voltage systems.
  • Used in industrial control panels and equipment.
  • Suitable for battery-powered devices and chargers.
  • Provides overcurrent protection in lighting systems.

FX0380 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the FX0380 fuseholder?

The FX0380 is rated for 10A.

What is the voltage rating of the FX0380 fuseholder?

The voltage rating is 50V.

What type of fuse does the FX0380 accept?

It accepts 5mm x 20mm cartridge fuses.

What is the operating temperature range of the FX0380?

The operating temperature range is -20°C to +90°C.

What termination style does the FX0380 use?

The datasheet specifies screw terminal termination.

Is the FX0380 RoHS compliant?

Yes, it is RoHS3 compliant.
