| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

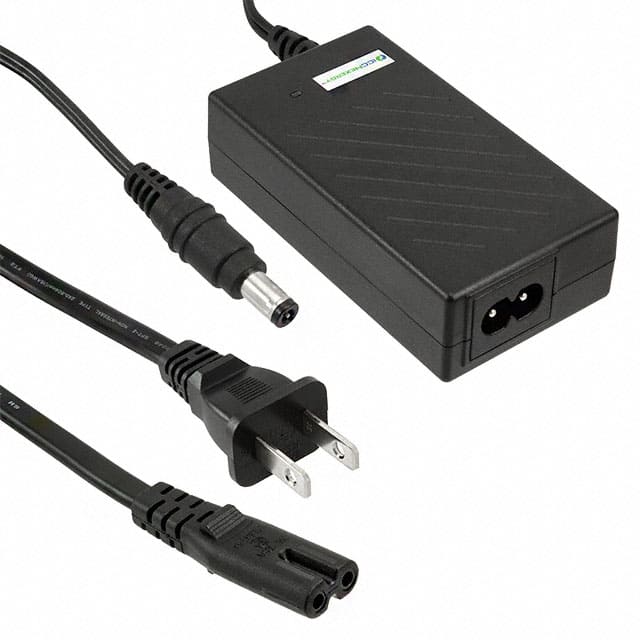

This AC/DC desktop adapter from Inventus Power, part number FWE030015B-10B, delivers a 15V output at 2A, totaling 30W of power. It is designed for ITE (Commercial) applications and complies with Level V efficiency standards. The adapter features an IEC 320-C6 input connector and a common barrel plug output with positive center polarization (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
The unit operates within a temperature range of 0°C to 60°C and has a low no-load power consumption of 300mW maximum. Its dimensions are 89.6mm in length, 48.8mm in width, and 25.2mm in height. The adapter is designed as a Class II desktop unit and is approved by CB, CE, and cTUVus agencies, making it suitable for North American utilization.
The FWE030015B-10B is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is designed for reliable performance in commercial environments.
The output is 15V DC at 2A, providing 30W of power.
It uses a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, positive center polarity.
It meets Level V efficiency standards.
The operating temperature range is 0°C to 60°C.
It uses an IEC 320-C6 input connector.
The adapter measures 89.6mm in length, 48.8mm in width, and 25.2mm in height.
