| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width | |
| efficiency_level |

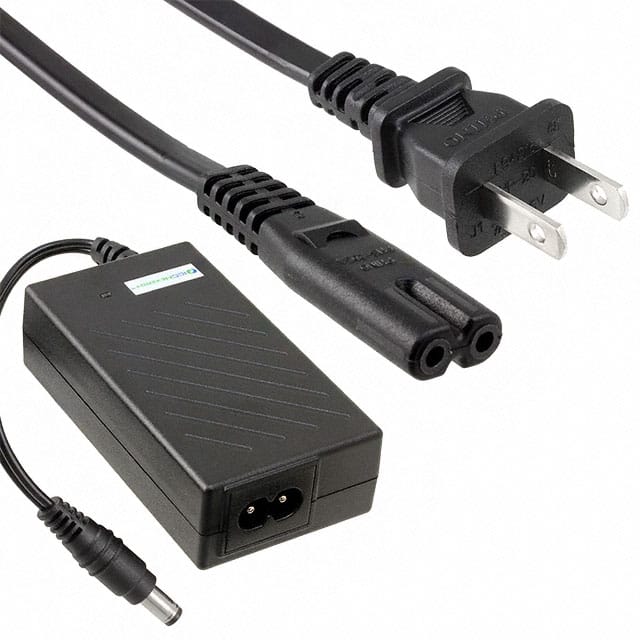

The FWE030009B-10B is a 30W AC/DC desktop power supply from Inventus Power, part of the FWE030 series. It delivers a fully regulated 9V DC output at 3.3A continuous current with 85% typical efficiency. The adapter features a universal input range of 85-264VAC, making it suitable for worldwide use. It complies with Level V efficiency standards and has a no-load power consumption of less than 300mW.
Protection features include over voltage (112-135%), over current (108-180%), and short circuit protection with auto-restart. The adapter also includes active and passive over temperature protection. It has a hold-up time greater than 16ms and a start-up delay under 1.5s.
Mechanical design: Desktop form factor (Class II) with IEC 320-C8 input connector and a 2.5mm ID x 5.5mm OD barrel plug output connector with positive center polarity. The unit measures 89.6mm x 48.8mm x 25.2mm and includes a 48-inch (1.22m) output cord. The adapter is approved to CB, CE, cURus, GS, and TUV standards for commercial ITE applications. It is RoHS3 compliant and has a 5-year limited warranty.
The FWE030009B-10B includes an AC power cord (indicated by -10B suffix). The adapter is designed for natural convection cooling and operates over 0°C to 60°C temperature range.
85-264 VAC.
89.6mm x 48.8mm x 25.2mm, desktop form factor, IEC 320-C8 input connector, 2.5mm/5.5mm barrel plug output connector.
0°C to 60°C.
RoHS3 Compliant (unverified).
9V DC at 3.3A.
