| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage | |
| Weight |

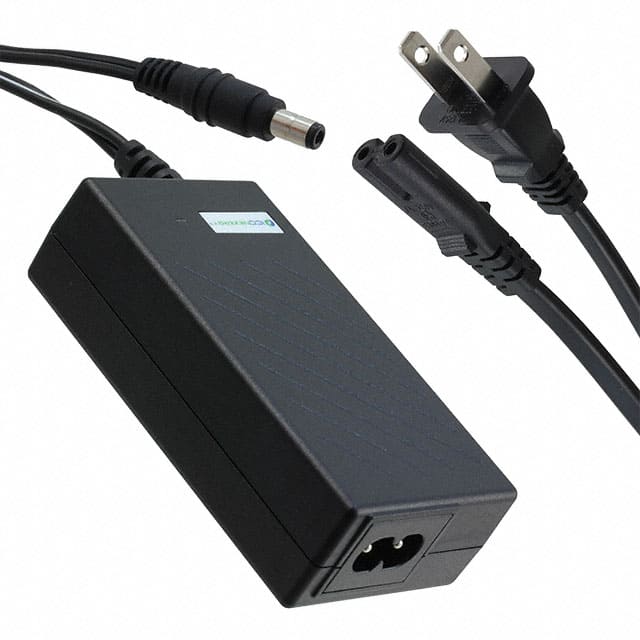

The Inventus Power FWE030005B-10B is a 30-watt ITE (Commercial) desktop power supply designed for reliable DC output. It provides a regulated 5V at 6A, with a total regulation of +/-5% and a typical efficiency of 84%.
This power supply operates within an input voltage range of 85-264 VAC and features an input frequency of 47-63 Hz. It includes protections such as over-voltage, over-current, and short-circuit with auto-restart. The unit has a hold-up time greater than 16ms at full load and a low zero-load power consumption of less than 0.3W.
Designed for ease of integration, it uses an IEC 320-C8 input connector and offers a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The dimensions are 89.6mm x 48.8mm x 25.2mm, and it operates within a temperature range of 0°C to 60°C. It is certified by TUV to standards including EN60950-1 Class II, cTUVus, UL 60950-1, and CE marked.
0°C to 60°C with derating above 40°C.
85-264 VAC at 47-63 Hz.
Barrel plug, 2.5mm ID x 5.5mm OD x 9.5mm, positive center.
89.6mm L x 48.8mm W x 25.2mm H.
EN60950-1 Class II, cTUVus to UL 60950-1 and CSA C22.2 No.950-1, CB per IEC60950-1, CE marked.
84% typical, Level V compliant.
Yes, over voltage protection is set at 112-135% of rated output.
