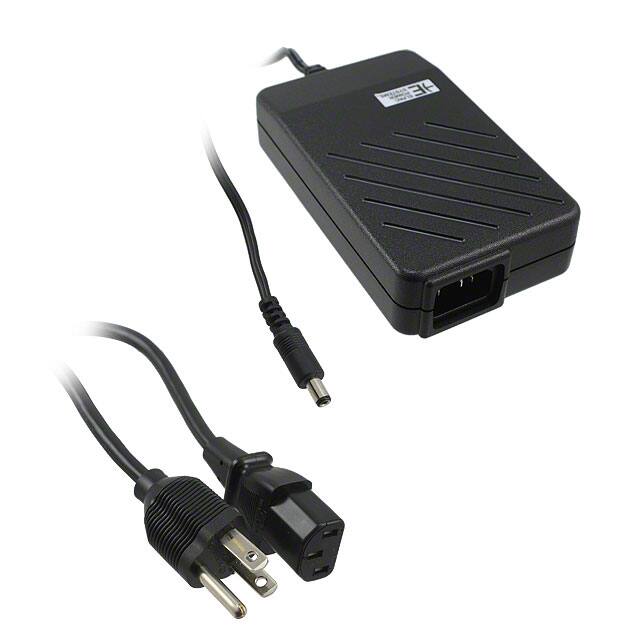

The Inventus Power FWC5024-760F is a Class I desktop AC/DC adapter delivering a regulated 24V output at 2.1A with a maximum power of 50W. It features Level V efficiency and a maximum no-load power consumption of 300mW, making it suitable for commercial ITE applications.
The adapter accepts input via a detachable IEC 320-C14 cord and provides output through a standard 2.5mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with positive center polarity. The output cord is 1.83m (72 inches) long. The unit measures 127.0mm x 76.2mm x 33.0mm and operates over a temperature range of 0°C to 60°C.
Designed for use in North America, the FWC5024-760F carries approvals from CB, CE, cTUVus, and UL. It is intended for commercial ITE (Information Technology Equipment) applications.
The output voltage is 24V and the output current is 2.1A.
The power rating is 50W.
It meets Level V efficiency.
It uses a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center polarity.
The operating temperature range is 0°C to 60°C.
It is approved by CB, CE, cTUVus, and UL.
