| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

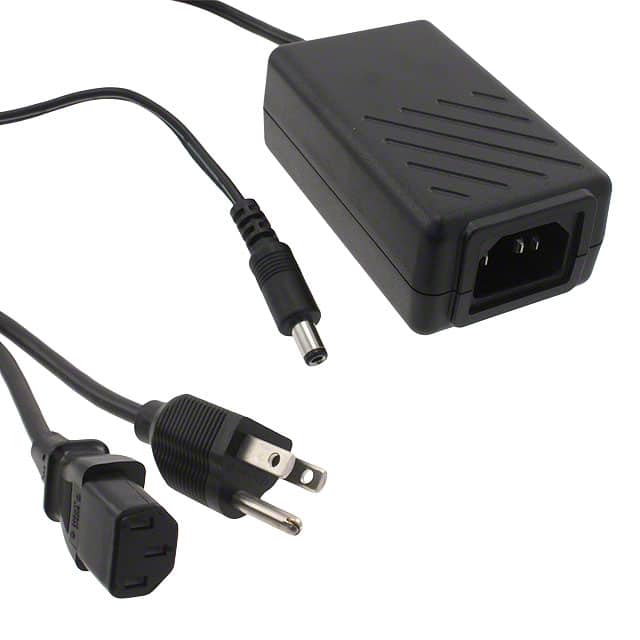

This AC/DC desktop adapter from Inventus Power delivers a regulated 24V output at 800mA, with a total power rating of 19W. It meets Level V energy efficiency standards and consumes less than 500mW under no-load conditions. The adapter is designed for Class I desktop operation and accepts universal AC input through a standard IEC 320-C14 connector. The output connector is a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, with a positive center polarity. The attached output cord is 72 inches (1.83m) long. The adapter is housed in a compact chassis measuring 85mm x 50mm x 33mm. It is intended for commercial ITE applications and operates over a temperature range of 0°C to 60°C. Safety approvals include CB, CE, cTUVus, and UL.
The output voltage is 24V DC.
The operating temperature range is 0°C to 60°C.
It is listed as RoHS3 Compliant, but this status is unverified.
The output current is 800mA.
It uses a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, with positive center polarity.
The efficiency is Level V.
It has CB, CE, cTUVus, and UL approvals.
