| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight |

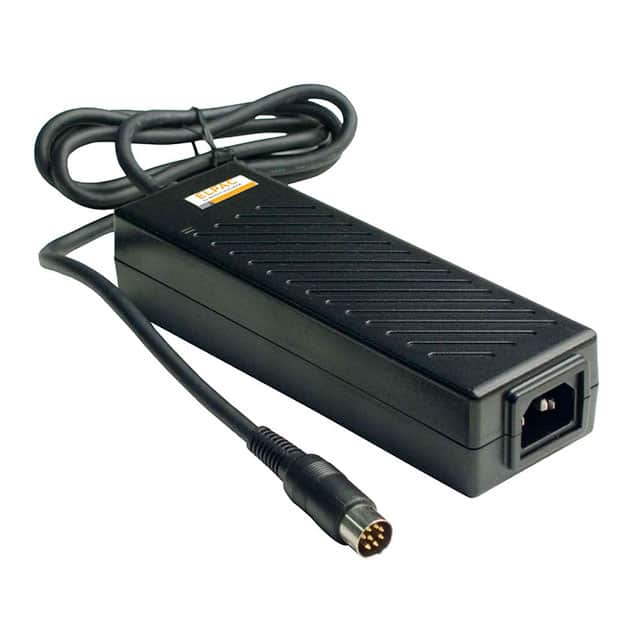

The Inventus Power FWC100024A-11A is an AC/DC external desktop adapter designed for commercial ITE applications. It delivers a stable 24V output at a maximum current of 4.1A, providing a total power of 98W. This adapter meets Level VI efficiency standards, ensuring optimal energy usage.
The unit features an IEC 320-C14 input connector and a DIN 5-pin output connector. Its compact dimensions are 180.2mm x 57.5mm x 38.6mm, making it suitable for various setups. The operating temperature range is from 0°C to 60°C.
Compliance includes RoHS3 status. The adapter operates within an input voltage range of 85 to 264 VAC and has a no-load power consumption of 200mW maximum. The cord length is 48 inches (1.22m), and it is sold separately.
The FWC100024A-11A has an output voltage of 24V and a maximum output current of 4.1A.
The power rating for the FWC100024A-11A is 98W.
The FWC100024A-11A meets Level VI efficiency standards.
The operating temperature range for the FWC100024A-11A is 0°C to 60°C.
The FWC100024A-11A uses an IEC 320-C14 input connector.
The output connector type is DIN, 5 Pin.
