| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

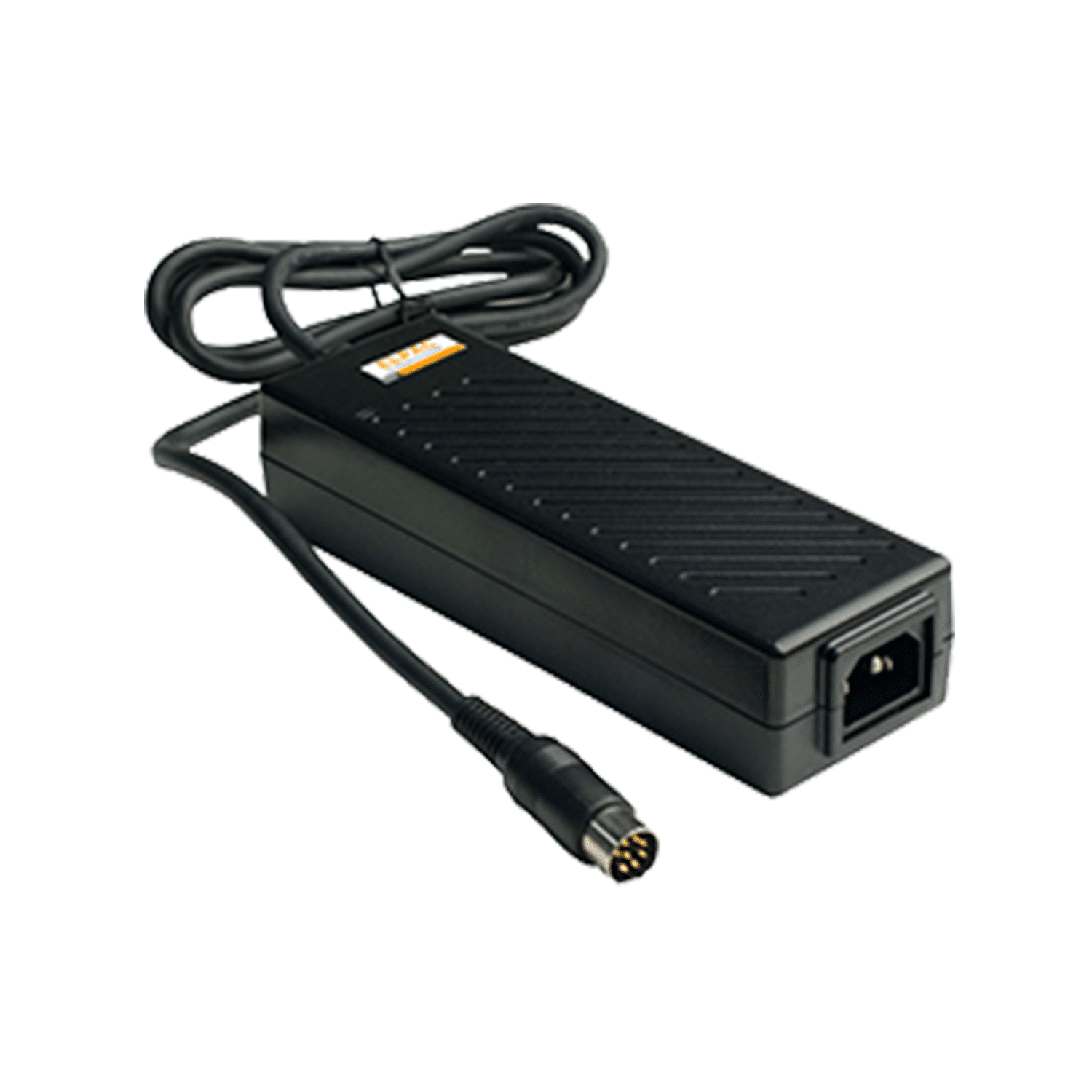

The Inventus Power FWC100015A-12A is a 100 Watt Class I ITE Desktop Power Supply designed for commercial applications. This external adapter operates with an input voltage range of 85-264VAC and provides a stable 15V output at 6.7A, with a peak current capability of 8.0A.
It meets Level VI efficiency standards and offers high power density. The power supply features a grounded output, over-voltage protection, over-current protection, and short-circuit protection with auto-restart. The input connector is an IEC 320-C14, and the output connector is an 8-pin DIN.
With dimensions of 180.2mm x 57.5mm x 38.6mm, it is suitable for desktop integration. The operating temperature range is 0°C to 60°C, and it is cooled by natural convection. This power supply is built for reliability with an expected lifetime of over 5 years and a 5-year limited warranty.
The output voltage is 15V.
The maximum output current is 6.7A, with a peak current of 8.0A.
The power rating is 99W.
It meets Level VI efficiency standards.
The operating temperature range is 0°C to 60°C.
It uses an IEC 320-C14 input connector.
The dimensions are 180.2mm x 57.5mm x 38.6mm.
