| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

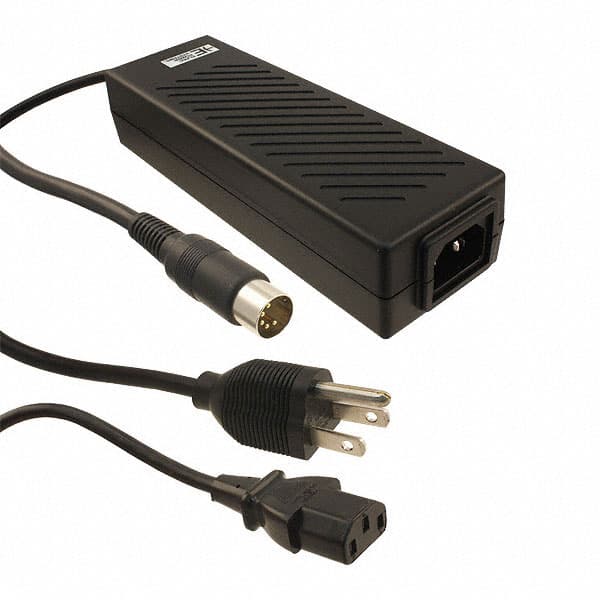

The Inventus Power FWC100012A-12B is a 100W AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output with a current rating of 8.3A.
This adapter features Level VI efficiency, ensuring reduced energy consumption. The input connector is an IEC 320-C14, and the output utilizes a DIN 8-pin connector. Its dimensions are 180.2mm in length, 57.5mm in width, and 38.6mm in height.
The operating temperature range is from 0°C to 60°C. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. The adapter is designed for North American utilization and operates as a Class I device.
The input voltage range is 100-240 VAC.
The output is 12 VDC at 8.3A.
The power rating is 100W.
The operating temperature range is 0°C to 60°C.
It meets Level VI efficiency.
It uses an IEC 320-C14 input connector.
It uses an 8-pin DIN output connector.
