| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

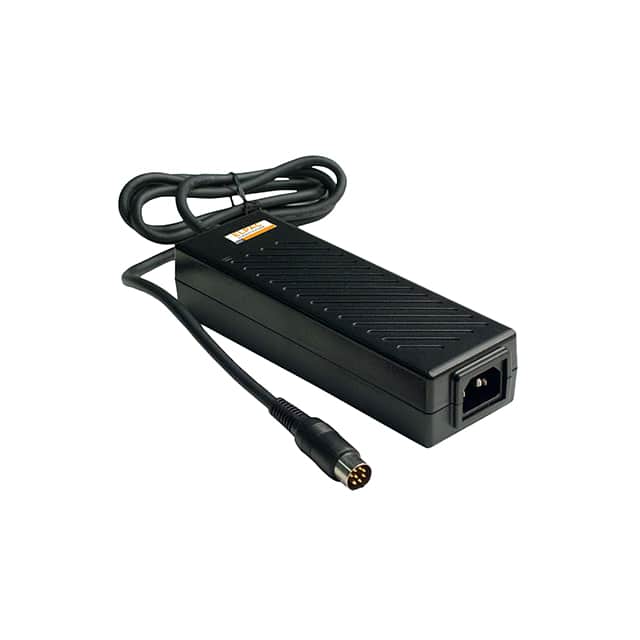

The Inventus Power FWC100012A-12A is a 100 Watt ITE Desktop Power Supply from the FWC100 Series, designed for commercial and industrial applications.
This Class I power supply operates with an input voltage range of 85-264VAC and features a power factor greater than 0.97. It delivers a stable 12V output at 8.3A, with a peak current capability of 10.0A. The unit boasts high efficiency, meeting Level VI standards, and a power density of 4.2W/in³.
Key electrical protections include Over Voltage Protection (110-135%), Over Current Protection (115-175%), and Short Circuit Protection with auto-restart. It offers a hold-up time of over 25ms and a start-up delay of less than 1.5s. The operating temperature range is 0-60°C.
Designed with a compact form factor, its dimensions are 180.2mm x 57.5mm x 38.6mm. The input connector is an IEC 320-C14 receptacle, and the output is provided via an 8-pin DIN connector. The unit comes with a 48-inch (1.22m) cord for the 12V model. It is backed by a 5-year limited warranty.
The output voltage is 12V.
The maximum output current is 8.3A.
The power rating is 100 Watts.
It meets Level VI efficiency standards.
The operating temperature range is 0–60°C.
It has IEC62368-1 Class I safety approval.
It comes with a 5-year limited warranty.
