Mfr Part #:

FWC080024A-11A

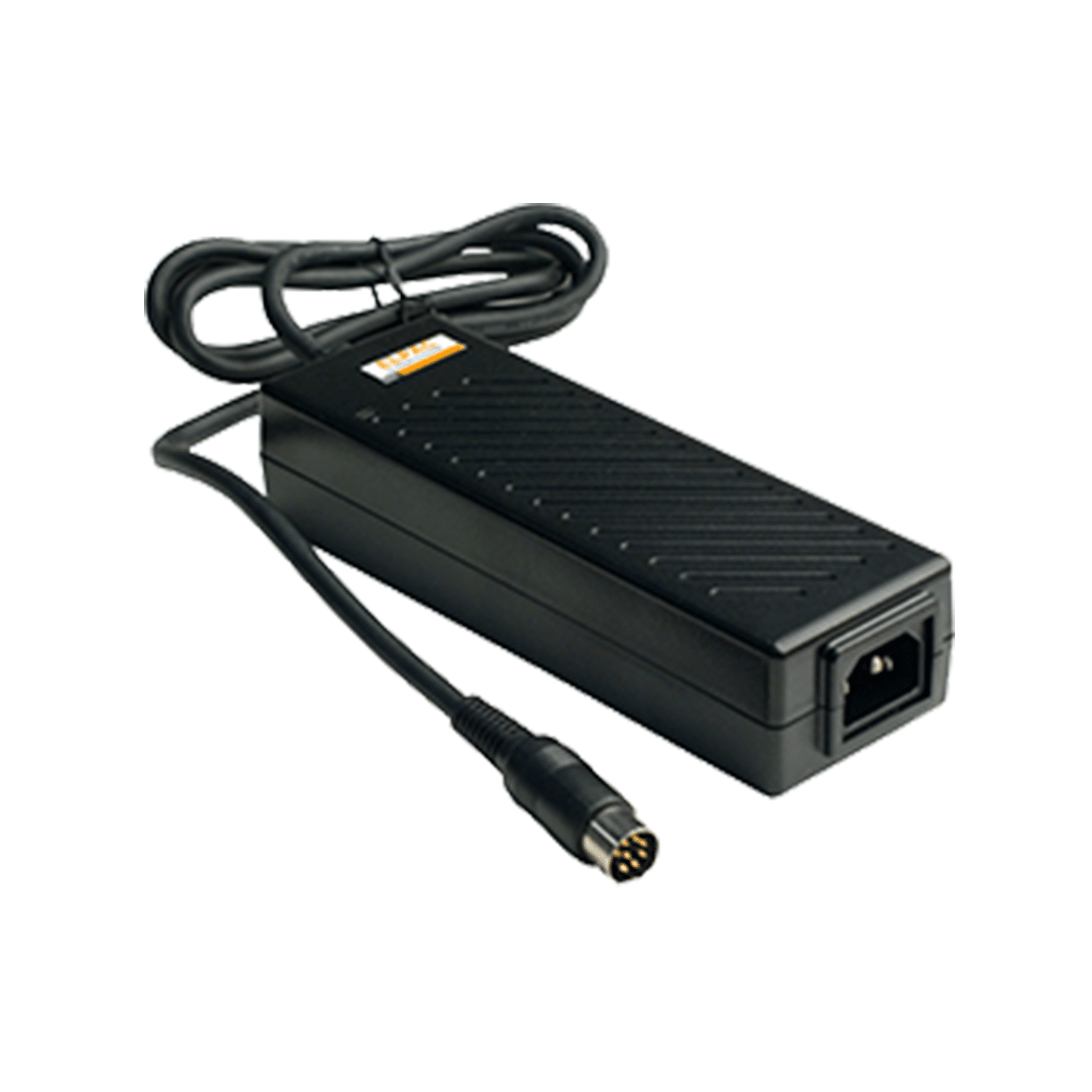

The Inventus Power FWC080024A-11A is an 80W AC/DC desktop power supply providing a 24V output at 3.33A. It features Level VI efficiency and an IEC 320-C14 input connector.

Stock on Request

FWC080024A-11A Description

Short technical summary and product information.

The Inventus Power FWC080024A-11A is an 80 Watt ITE desktop power supply designed for commercial applications. It operates with an input voltage range of 85-264VAC and offers a stable 24V output at 3.33A, with a peak current capability of 4.0A. This power supply meets Level VI efficiency standards, ensuring energy savings.

Key electrical specifications include a power factor greater than 0.97, low no-load power consumption of less than 0.15W, and a hold-up time exceeding 25ms at full load. Protection features include over-voltage, over-temperature, over-current, and short-circuit protection with auto-restart.

The unit features an IEC 320-C14 input connector and a 5-pin DIN output connector. Its dimensions are 180.2mm x 57.5mm x 38.6mm, and it utilizes natural convection cooling. The operating temperature range is 0°C to 60°C.

Compliance includes FCC Class B, EN55032, EN55035, and safety approvals such as IEC62368-1 and cTUVus. It is suitable for international use and comes with a 5-year limited warranty.

FWC080024A-11A Quick Information

Product Type: AC/DC Desktop Power Supply

Series: FWC080 Series - Class I

Canonical Name: Inventus Power FWC080024A-11A 80W AC/DC Desktop Power Supply, 24V, 3.33A

Subcategory: AC/DC Desktop Adapter

FWC080024A-11A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FWC080024A-11A Features

80W AC/DC desktop power supply.
24V output at 3.33A current.
Level VI high efficiency rating.
Wide 85-264VAC input voltage range.
IEC 320-C14 input and 5-pin DIN output.

FWC080024A-11A Applications

Ideal for industrial automation and control systems.
Suitable for IoT gateways and networking equipment.
Used in point-of-sale and kiosk applications.
Designed for test and measurement instrumentation.

FWC080024A-11A FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the FWC080024A-11A?

The input voltage range is 85-264VAC (100-240VAC nominal).

What output voltage and current does the adapter provide?

It provides 24V output at 3.33A continuous, with a peak current of 4.0A for up to 500ms.

What is the efficiency rating of this adapter?

Typical efficiency is 89.0% at 115VAC and 90.0% at 230VAC, meeting Level VI standards.

What protections are included?

Over-voltage protection (110-135%), over-current protection (115-175%), over-temperature protection (auto-recover), and short circuit protection (shutdown with auto-restart hiccup mode).

What is the operating temperature range?

The operating temperature range is 0°C to 60°C, with full load up to 40°C and linear derating to 50% load at 60°C.

What are the dimensions and weight?

Dimensions: 180.2mm x 57.5mm x 38.6mm (7.09" x 2.27" x 1.52"). Weight: 0.69 kg (1.52 lbs).

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Inventus Power
Applications	ITE (Commercial)
Approval Agency	CE, cTUVus
Cord Length	72" (1.83m)
Current	3.3A
Efficiency	Level VI
Form	Desktop (Class I)
Form Factor	Desktop (External)
Input Connector	IEC 320 C14
Input Frequency	47-63 Hz
Input Type	Cord (Sold Separately)
Input Voltage	85-264 VAC
No Load Power Consumption	500mW (Max)
Operating Temperature	0°C ~ 60°C
Output Connector	DIN, 5 Pin
Output Current	3.33A
Power (Watts)	80W
Region Utilized	International
Relative Humidity	5-95%
Storage Temperature	-40°C to +85°C
Voltage	24V
Weight	0.69 Kg (1.52 LBS)
