| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

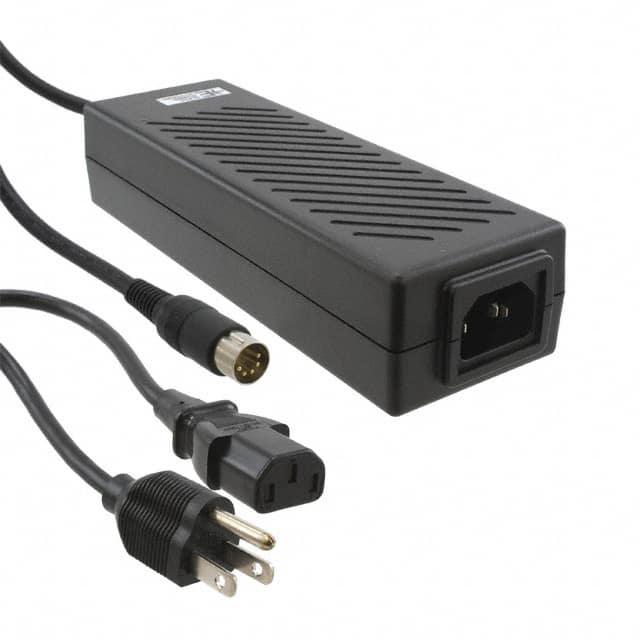

The FWC080018A-11B from Inventus Power is a versatile AC/DC external desktop adapter delivering 18V at 79W. Designed for ITE (Commercial) applications, it meets Level V efficiency standards.
Key specifications include an input voltage range of 85 to 264 VAC and a maximum output current of 4.4A. The adapter features an IEC 320-C14 input connector and a DIN, 5 Pin output connector. Its operating temperature range is from 0°C to 60°C, with a low no-load power consumption of 500mW maximum.
The adapter has dimensions of 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) and weighs 1.6 lbs (725.7g). It is approved by CB, CE, and cTUVus, ensuring compliance with various safety and performance standards. The cord length is 72 inches (1.83m).
This adapter is suitable for various commercial applications requiring a stable and efficient power supply. Its robust design and approvals make it a reliable choice for integration into electronic systems.
The FWC080018A-11B provides an 18V output voltage with a maximum power of 79W.
The maximum output current for the FWC080018A-11B is 4.4A.
The adapter accepts an input voltage range of 85 to 264 VAC.
The operating temperature range is from 0°C to 60°C.
The no-load power consumption is a maximum of 500mW.
The dimensions are 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm).
Yes, this part is RoHS3 Compliant.
