| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight |

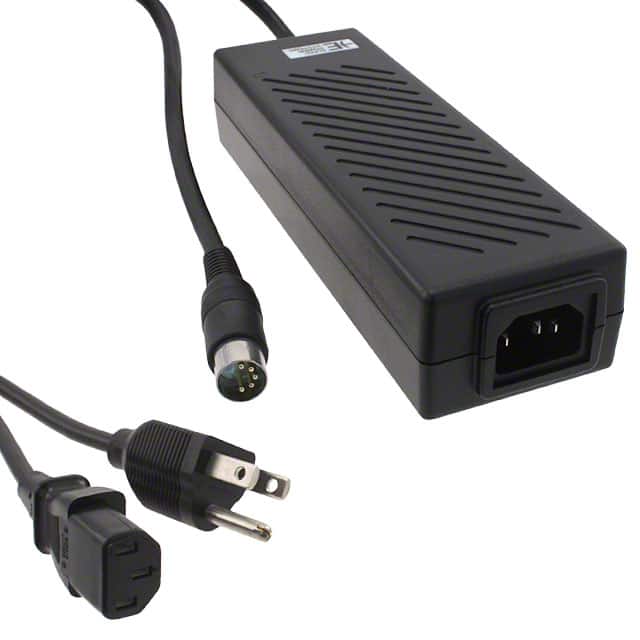

The Inventus Power FWB100018A-11B is a 100W ITE desktop power supply designed for commercial applications. It delivers a stable 18V output at 5.5A, with a total power rating of 99W. This unit features Level V high efficiency and a power density of 4.2W/in3.
The power supply operates across a wide input voltage range of 85-264VAC with a frequency of 47-63Hz. It includes Power Factor Correction and has a low zero-load power consumption of less than 0.5W. Protection features include Over Voltage Protection (110-135%), Over Temperature Protection, Over Current Protection (120-180%), and Short Circuit Protection with auto-restart.
Designed for reliability, it boasts a minimum MTBF of 200,000 hours and a lifetime expectation of over 5 years. The operating temperature range is 0°C to 60°C, with derating at higher temperatures. Its dimensions are 180.2mm x 57.5mm x 38.6mm, and it utilizes natural convection cooling. The unit is certified by cTUVus, cULus, and meets CB standards per IEC60950-1, with CE marking for LVD & EMC compliance.
The output voltage is 18V and the output current is 5.5A, providing 99W of power.
It supports a universal input range of 85-264VAC at 47-63Hz.
The operating temperature range is 0°C to 60°C, with full load up to 40°C and linear derating to 50% load at 60°C.
It is approved to UL 60950-1, CAN/CSA-22.2 No.60950-1, CB per IEC60950-1, and CE marked to LVD and EMC. It is also EISA and CEC compliant.
The adapter includes over-voltage protection (110-135%), over-current protection (120-180%), short-circuit protection (hiccup mode), and over-temperature protection.
