| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage | |
| Weight |

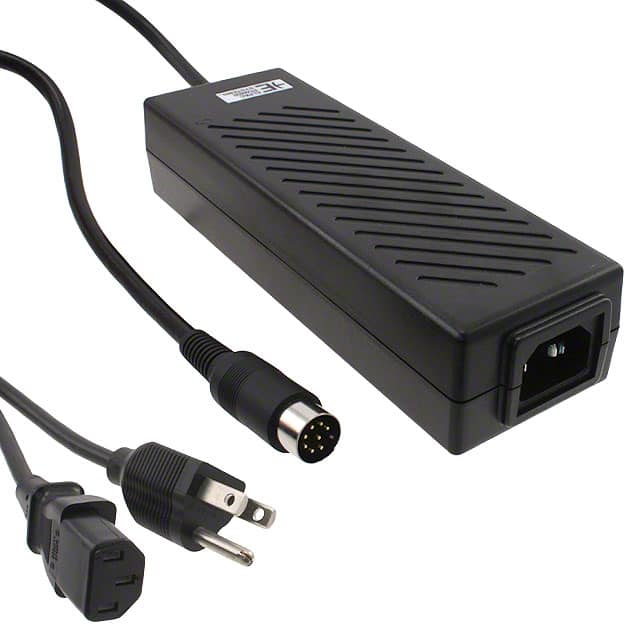

The Inventus Power FWB100012A-12B is a 100W AC/DC desktop power supply designed for ITE (Commercial) applications. It delivers a stable 12V output at 8.3A, meeting Level V efficiency standards.
This power supply features an input voltage range of 85-264VAC and operates at a frequency of 47-63Hz. Key electrical specifications include a power factor greater than 0.97, zero load power consumption under 0.5W, and a hold-up time exceeding 48ms. Protection features include over-voltage, over-current, and short-circuit protection with auto-restart.
The unit is housed in a desktop form factor (Class I) with dimensions of 180.2mm x 57.5mm x 38.6mm. It utilizes an IEC 320-C14 input connector and a DIN 8-pin output connector with a cord length of 72 inches (1.83m). The operating temperature range is 0°C to 60°C, with natural convection cooling.
Compliance certifications include CB, cTUVus, and UL, with emissions meeting FCC class B and CISPR22 class B standards. The FWB100012A-12B is suitable for various commercial applications requiring reliable power.
12V at 8.3A (100W).
85-264VAC.
0°C to 60°C.
CB, cTUVus, UL.
Level V, typical 86%.
Desktop (Class I) with IEC 320-C14 input and 8-pin DIN output.
Over voltage, over current, and short circuit protection with hiccup mode.
