| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Current - Output | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Voltage - Output | |
| Width | |
| efficiency_level |

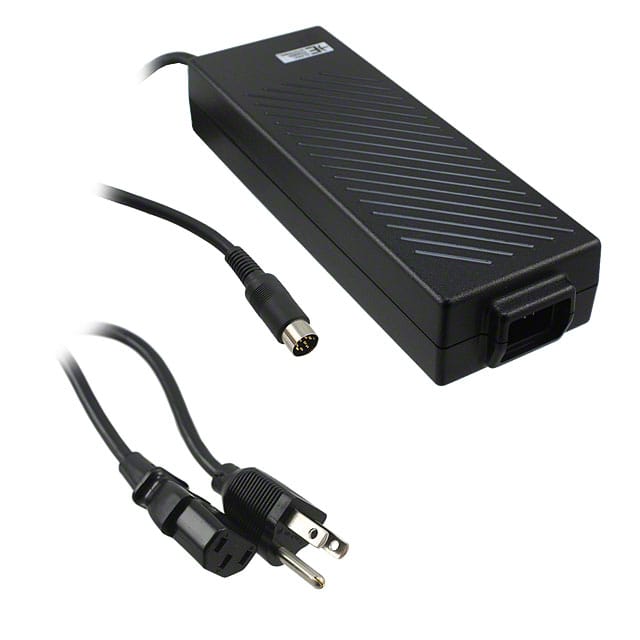

The FWA220024A-12A is a desktop AC/DC power supply from Inventus Power, part of the ELPAC FWA220 series. It provides a regulated 24V DC output at 9.2A, delivering 221W of power. The adapter operates from a wide input voltage range of 85-264VAC at 47-63Hz, making it suitable for global use.
This adapter features a typical efficiency of 90% at 115VAC and meets Level VI efficiency standards (though the datasheet indicates Level V). It includes comprehensive protection features: over voltage protection (110-135%), over current protection (105-110%), and short circuit protection with auto-restart hiccup mode. Total regulation is ±5% including line, load, and thermal drift.
The unit is designed for natural convection cooling and operates in ambient temperatures from 0°C to 60°C, derating linearly to 50% load at 60°C. It has a minimum hold-up time of 20ms at full load and a startup delay of less than 1.5s. The power density is 5.9 W/in³.
Mechanically, the adapter is a desktop Class I unit with an IEC 320-C14 input connector and a DIN 8-pin output connector. It weighs 0.95 kg and measures approximately 208mm x 73.1mm x 39.5mm (length according to datasheet). The AC cord is not included. It is intended for ITE (commercial) applications and carries approvals including CB, CE, GS, TUV.
24V DC.
It has an IEC 320-C14 input connector and a DIN 8-pin output connector.
0°C to 60°C, with derating above 40°C.
The part is listed as RoHS3 compliant, but this is unverified.
Typical efficiency is 90% at 115VAC. The datasheet indicates Level V efficiency, though the database lists Level VI.
Over voltage protection (110-135%), over current protection (105-110%), and short circuit protection with auto-restart hiccup mode.
85-264VAC, with nominal 100-240VAC.
