| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

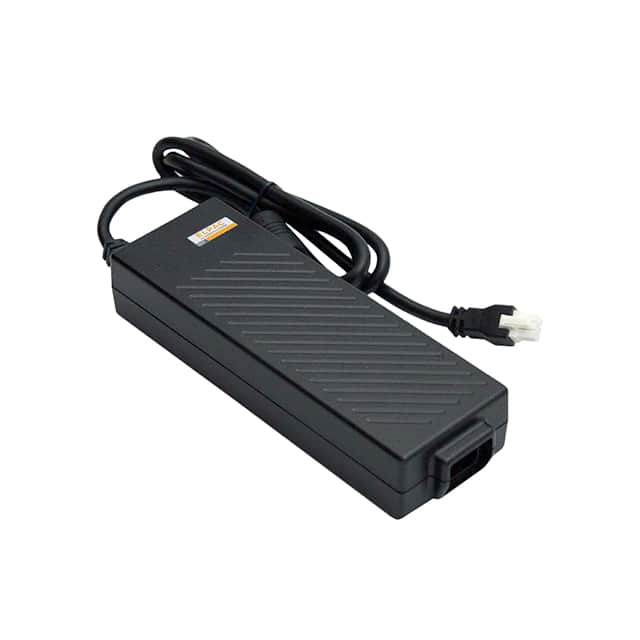

The Inventus Power FWA220012A-13A is a 220 Watt ITE Desktop Power Supply from the FWA220 Series. It operates with an input voltage range of 85-264VAC and provides a stable 12V output at 18.3A.
This power supply meets Level VI efficiency standards and offers a high power density of 5.9W/in³. Key electrical specifications include a power factor greater than 0.97, a hold-up time exceeding 20ms at full load, and over-voltage, over-current, and short-circuit protections. The unit is designed for reliability with a lifetime expectation of over 5 years and a 5-year limited warranty.
Mechanically, the power supply measures 216.4mm x 73.1mm x 39.5mm and weighs 0.95 Kg. It features an IEC 320-C14 input connector and a 6-position rectangular output connector. The operating temperature range is 0°C to 60°C, with natural convection cooling.
Compliance includes safety approvals such as CB, CE, GS, and TUV, along with emissions standards like FCC Class B and EN55022 Class B. It is designed for ITE (Commercial) applications.
The FWA220012A-13A provides a 12V output at 18.3A.
The power rating for this unit is 220 Watts.
The input voltage range is 85-264 VAC.
The operating temperature range is 0°C to 60°C.
Yes, the RoHS status is RoHS3 Compliant.
The hold-up time is greater than 20ms at full load.
It uses an IEC 320-C14 input connector.
