| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

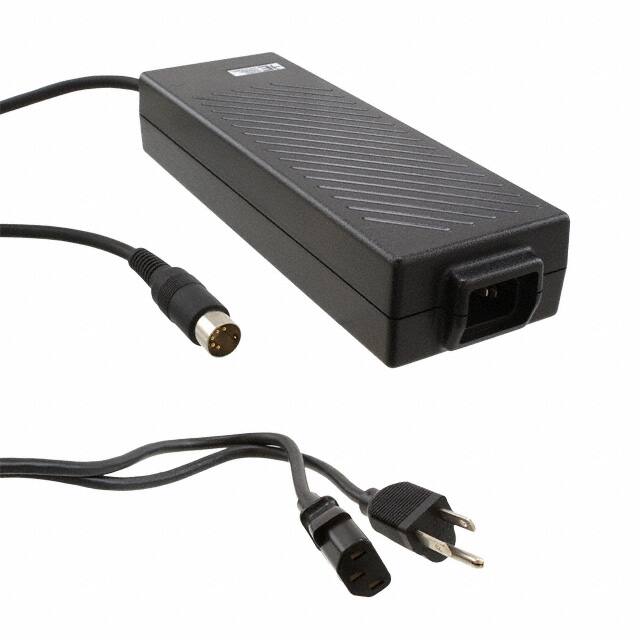

The Inventus Power FWA180048A-11B is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a robust 180W of power with a 48V output voltage and a 3.75A current rating.
This adapter features an input voltage range of 100-240 VAC and complies with Level V efficiency standards, ensuring energy savings. The no-load power consumption is a maximum of 500mW. Its operating temperature range is from 0°C to 60°C.
Mechanically, the unit has dimensions of 208.0mm x 73.0mm x 39.0mm. It utilizes an IEC 320-C14 input connector and a DIN 5-pin output connector. The cord length is 72 inches (1.83m). The adapter is designed for desktop use and is classified as Class I.
Safety and regulatory approvals include CB, CE, and cTUVus, making it suitable for North American regions.
48V DC at 3.75A.
100-240 VAC.
0°C to 60°C.
Level V.
IEC 320-C14 input, 5-pin DIN output.
CB, CE, cTUVus.
Desktop (Class I).
