| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

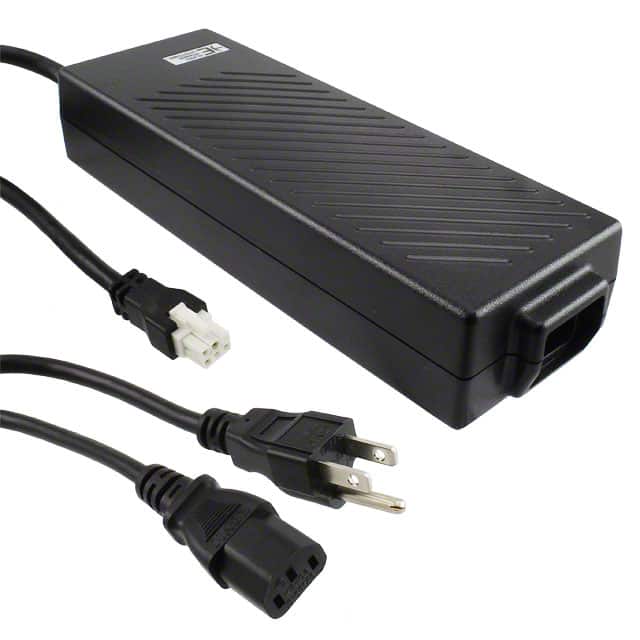

The Inventus Power FWA180012A-13B is a versatile AC/DC desktop adapter delivering 180 watts of power with a 12V output and a maximum current of 15A. Designed for ITE (Commercial) applications, it meets Efficiency Level V standards and operates within an input voltage range of 85 to 264 VAC, making it suitable for North American regions.
This adapter features an IEC 320-C14 input connector and a Rectangular, 6 Position output connector. Its dimensions are 208.0mm x 73.0mm x 39.0mm. The operating temperature range is from 0°C to 60°C, and it has a low no-load power consumption of 500mW maximum. The unit is housed in a Desktop (Class I) form factor and includes a 72" (1.83m) cord.
Compliance is indicated by approval agencies including CB, CE, and cTUVus. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is REACH Unaffected. This adapter is part of the FWA180 series.
The output voltage is 12V DC.
The input voltage range is 85-264 VAC.
The operating temperature range is 0°C to 60°C.
The adapter is packaged in a box.
The output current is 15A.
It meets Level V efficiency.
It is a desktop (Class I) adapter.
