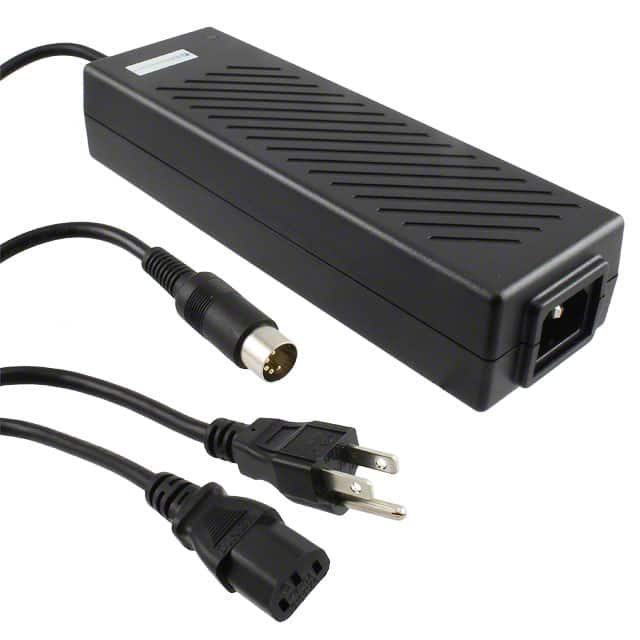

FWA120048A-11B The Inventus Power FWA120048A-11B is a 120W AC/DC desktop adapter with a 48VDC output and 2.5A input current. It features an IEC 320-C14 input connector and a DIN 5-pin output connector.
Mfr Part #:

FWA120048A-11B

Mfr Name: Inventus Power
Inventus Power
The Inventus Power FWA120048A-11B is a 120W AC/DC desktop adapter with a 48VDC output and 2.5A input current. It features an IEC 320-C14 input connector and a DIN 5-pin output connector.
Stock on Request

FWA120048A-11B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

FWA120048A-11B Description

Short technical summary and product information.

The Inventus Power FWA120048A-11B is a 120W AC/DC desktop power adapter designed for ITE (Commercial) applications. It provides a stable 48VDC output voltage with a 2.5A input current.



The adapter features an IEC 320-C14 input connector and a DIN 5-pin output connector, offering versatile connectivity options. Its dimensions are 192.0mm x 62.2mm x 38.7mm, with a cord length of 72 inches (1.83m).



Operating within a temperature range of 0°C to 60°C, this adapter meets Level V efficiency standards and has a maximum no-load power consumption of 500mW. It is designed as a Desktop (Class I) form factor.



Compliance includes CB, CE, and cTUVus approvals. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.

FWA120048A-11B Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: Inventus Power FWA120048A-11B AC/DC Desktop Adapter
Subcategory: AC DC Desktop, Wall Adapters

FWA120048A-11B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FWA120048A-11B Features

  • 120W AC/DC desktop power adapter.
  • 48VDC output voltage.
  • 2.5A input current.
  • IEC 320-C14 input connector.
  • DIN 5-pin output connector.

FWA120048A-11B Applications

  • Ideal for powering 48V ITE equipment.
  • Suitable for benchtop laboratory power needs.
  • Used in networking and telecommunications gear.
  • Integrates into workstations and test setups.

FWA120048A-11B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

100-240 VAC.

What is the output voltage?

48 VDC.

What is the output current?

2.5A.

What is the power rating?

120W.

What is the operating temperature range?

0°C to 60°C.

What efficiency level does it meet?

Level V.

What type of input connector does it have?

IEC 320-C14.
