| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

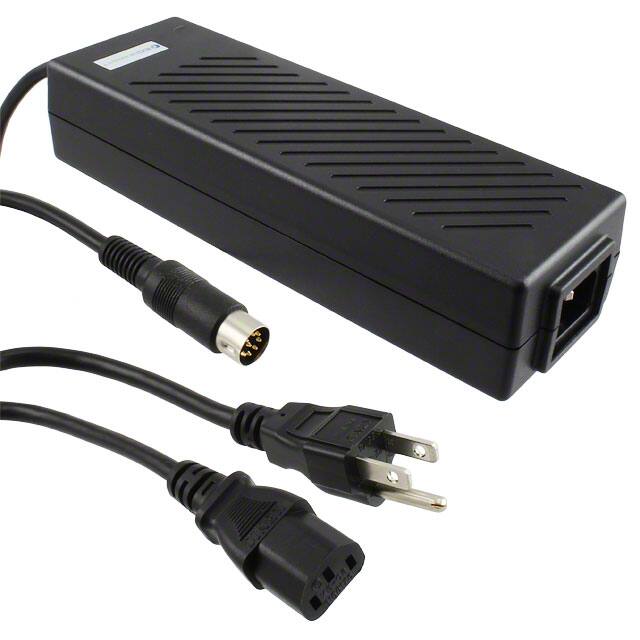

This AC/DC desktop adapter from Inventus Power, model FWA120015A-12B, delivers 120W of power with a stable 15V output and a maximum current of 8A. Designed for ITE (Commercial) applications, it operates within a wide input voltage range of 85 to 264 VAC.
The adapter conforms to a Desktop (Class I) form factor, making it suitable for various commercial environments. It utilizes an IEC 320-C14 input connector and a DIN, 8-pin output connector. The unit operates efficiently, meeting Level V efficiency standards and consuming a maximum of 500mW at no load. Its dimensions are 192.0mm x 62.2mm x 38.7mm, and it weighs 725.7g.
The operating temperature range for this adapter is 0°C to 60°C. It is packaged in bulk and is RoHS compliant. The adapter is designed for North American utilization.
The FWA120015A-12B has an output voltage of 15V and a maximum output current of 8A.
The FWA120015A-12B adapter has a power rating of 120W.
The adapter accepts an input voltage range of 85 to 264 VAC and features an IEC 320-C14 input connector.
The operating temperature range for this adapter is 0°C to 60°C.
The dimensions of the adapter are 192.0mm x 62.2mm x 38.7mm.
The FWA120015A-12B is RoHS compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
