| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

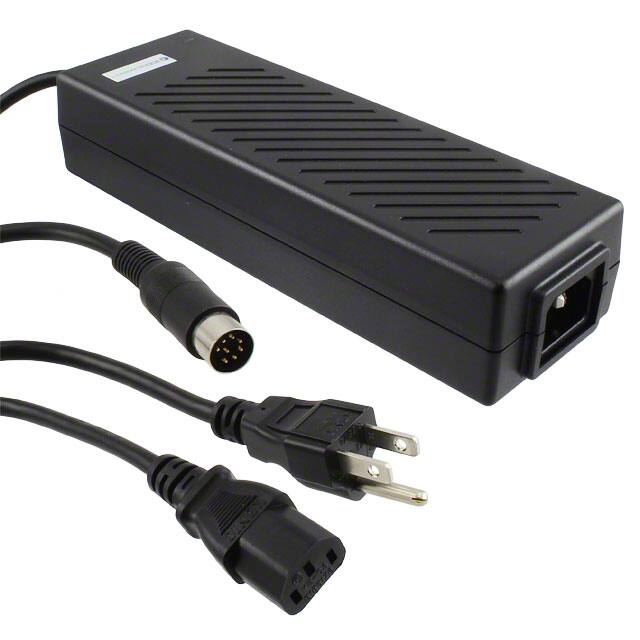

This Inventus Power FWA120012A-12B is a 120W AC/DC external desktop adapter with a 12V output and a maximum current of 10A. It operates with an input voltage range of 85 to 264 VAC and meets Level V efficiency standards. The adapter is designed for ITE (Commercial) applications and features a Class I form factor.
Key specifications include a 120W power rating, a no-load power consumption of 500mW (Max), and an operating temperature range of 0°C to 60°C. The unit utilizes an IEC 320-C14 input connector and a DIN, 8-pin output connector. Its dimensions are 192.0mm x 62.2mm x 38.7mm, and it has a cord length of 1.22m (48"). Approvals include CB, CE, and cTUVus, making it suitable for North American utilization.
The adapter is designed for reliable power delivery in commercial IT equipment. Its robust construction and adherence to efficiency standards ensure efficient operation. The desktop form factor with a cord input provides flexibility in deployment.
The adapter provides a 12V output voltage with a maximum current of 10A.
The adapter has a power rating of 120W.
The adapter accepts an input voltage range of 85 to 264 VAC.
The adapter can operate within a temperature range of 0°C to 60°C.
It features an IEC 320-C14 input connector and a DIN, 8-pin output connector.
The adapter measures 192.0mm x 62.2mm x 38.7mm.
