| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

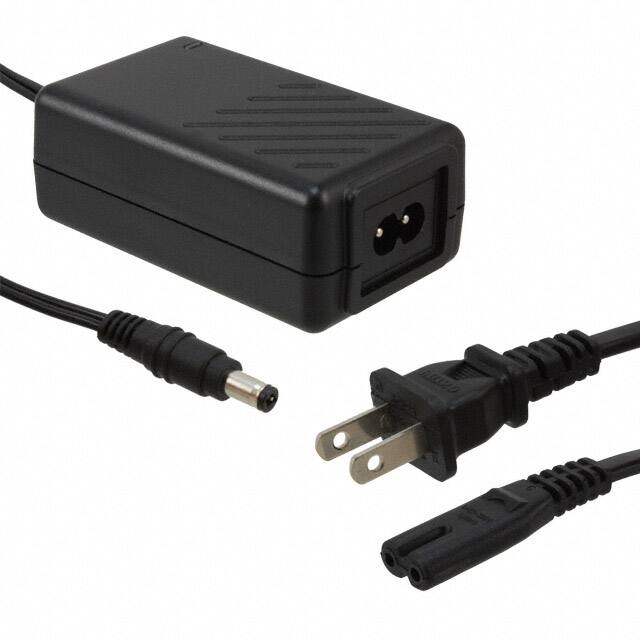

The FWA020012B-10B is a 20W desktop AC/DC power adapter from Inventus Power, designed for Information Technology Equipment (ITE) commercial applications. It accepts a universal AC input from 85-264VAC and delivers a regulated 12V DC output at up to 1.67A.
This Class II (double-insulated) adapter features an IEC 320-C8 input connector and a positive-center barrel plug output (2.5mm ID x 5.5mm OD) on a 48-inch cable. It offers full protection including over voltage, over current, short circuit (hiccup mode), and over temperature protection. Typical efficiency meets Level VI standards, with no minimum load required and a demonstrated MTBF of over 200,000 hours.
The adapter is certified to cTUVus, CB, and CE standards and is housed in a compact case measuring 87.7mm x 51.8mm x 33.0mm. Natural convection cooling supports operation from 0°C to 60°C.
The adapter provides 12V DC at 1.67A.
It uses an IEC 320-C8 (figure-8) input connector.
The RoHS status is listed as RoHS3 compliant but is unverified.
The operating temperature range is 0°C to 60°C.
No, the FWA020012B-10B has no minimum load requirement.
