| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage | |
| Weight |

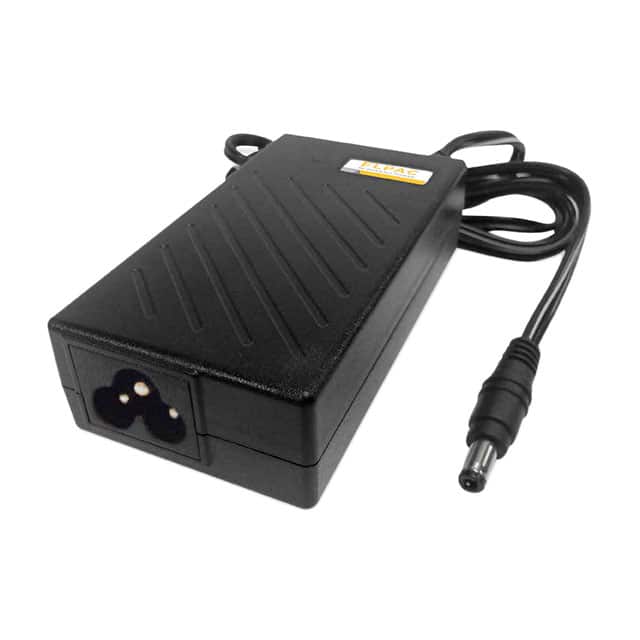

The Inventus Power FWA020012A-10A is a 20-watt AC/DC desktop power supply designed for ITE (Commercial) applications. It features a 12V output with a regulated DC output and a total regulation of ±5%. The unit operates with an input voltage range of 85-264 VAC and meets Level VI efficiency standards, ensuring energy savings.
This power supply boasts a compact desktop form factor (Class I) with dimensions of 87.7mm x 51.8mm x 33.0mm. It includes an IEC 320-C6 input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The power supply offers protections such as over-voltage, over-current, and short-circuit with auto-restart.
Compliance includes safety approvals from CB, CE, GS, and TUV, meeting IEC62368-1 standards. It also complies with DOE, CEC, and ERP directives. The operating temperature range is 0°C to 60°C, and it has a minimum MTBF of 200,000 hours. A 5-year limited warranty is provided.
The output voltage is 12V DC and the output current is 1.67A, providing 20W of power.
It supports a universal input voltage range of 85-264 VAC at 47-63 Hz.
It meets Level VI efficiency standards and consumes less than 0.075W at zero load.
It uses a barrel plug with a 2.5mm inner diameter and 5.5mm outer diameter, with positive center polarity.
It is certified to IEC 62368-1 Class I and carries cTUVus, UL 62368-1, CSA, and CB certifications.
The operating temperature range is 0°C to 60°C.
It comes with a 5-year limited warranty.
