| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Connector | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

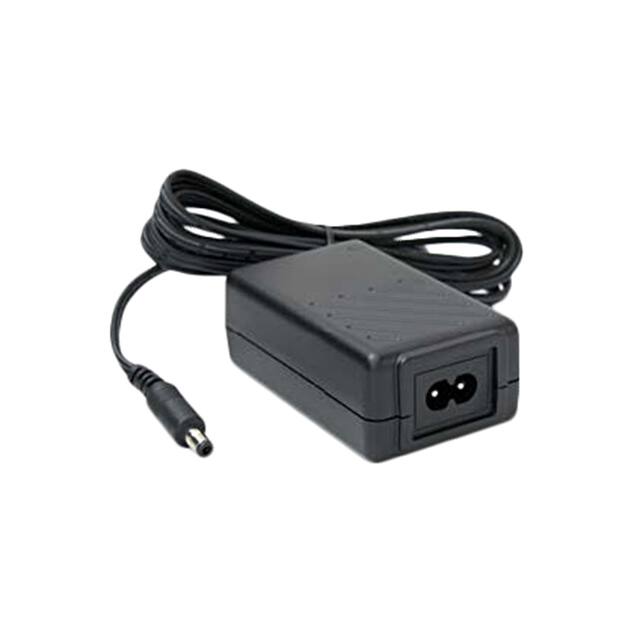

This Inventus Power FWA020009B-10A is a 20-watt AC/DC desktop power supply designed for ITE (Commercial) applications. It provides a fully regulated 9V DC output at 2.22A, with a peak current capability of 2.6A. The unit meets Level VI efficiency standards and operates within a wide input voltage range of 85-264 VAC.
The power supply features a compact size of 87.7mm x 51.8mm x 33.0mm and utilizes natural convection for cooling. It includes essential protections such as over-voltage, over-current, and short-circuit protection. The input connection is via an IEC 320 C8 receptacle, and the output is delivered through a 2.5mm I.D. x 5.5mm O.D. barrel plug with a positive center pin.
Compliance certifications include CB, CE, and cTUVus, meeting standards like EN60950-1 and UL 60950-1. The operating temperature range is 0°C to 60°C. This model is part of the FWA020 series, known for its reliability and efficiency in commercial IT equipment.
The output is 9V DC at 2.22A continuous (2.6A peak), with 20W total power.
Universal input from 85 to 264 VAC at 47-63 Hz.
It meets Level VI efficiency with average efficiency 83.4% at 115VAC and 82.8% at 230VAC.
Over-voltage protection (112-135%), over-current protection (108-160%), short-circuit protection with auto-restart hiccup mode, and over-temperature protection (active recoverable plus passive non-recoverable).
It is safety approved per EN60950-1 Class II, UL 60950-1, CSA 2.2 No.950, and CB per IEC60950-1. It is CE marked to LVD and EMC directives.
The output connector is a Switchcraft 760 or equivalent barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, positive center polarity. The cable length is 1.22m (48 inches).
Operating temperature range is 0°C to 60°C. Full load operation up to 40°C, with linear derating to 50% load at 60°C.
