| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

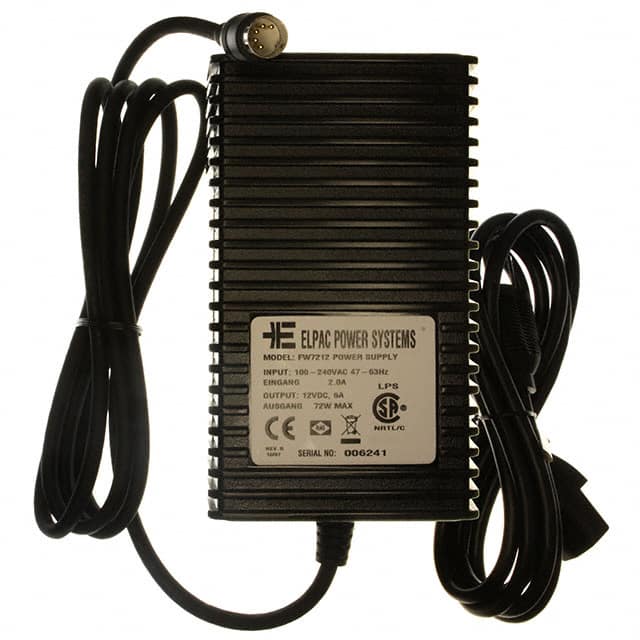

The Inventus Power FW7212-D5F is a 72 Watt AC/DC desktop adapter designed for ITE (Commercial) applications. It features a wide range AC input, accepting voltages from 100 to 240 VAC, and operates within a frequency range of 47 to 63 Hz.
The adapter delivers a regulated 12V DC output with a maximum current of 6A, providing a total power of 72W. Key electrical specifications include line regulation of +/- 1% and load regulation of +/- 5%. It is equipped with built-in over-voltage and over-current protection, and short-circuit protection with auto-recovery.
With an efficiency of 80% minimum at full load and 115 VAC, this adapter is designed for reliable performance. It operates within an ambient temperature range of 0 C to 40 C. The unit has a compact desktop form factor with dimensions of 165.0mm x 98.0mm x 66.0mm and weighs 2.5 lbs.
Compliance includes CE marking. The FW7212-D5F is RoHS3 compliant and has an MSL of 1. It utilizes a 3-pin IEC 320 input receptacle and a 5-pin DIN output connector.
100 to 240 VAC, 47-63 Hz.
12V at 6A, total power 72W.
0°C to 40°C operating, -55°C to 85°C storage.
Yes, pulsing mode with auto recovery.
80% minimum at full load and 115 VAC.
IEC 320-C14 input connector and DIN 5-pin output connector.
Yes, the approval agency is CE.
