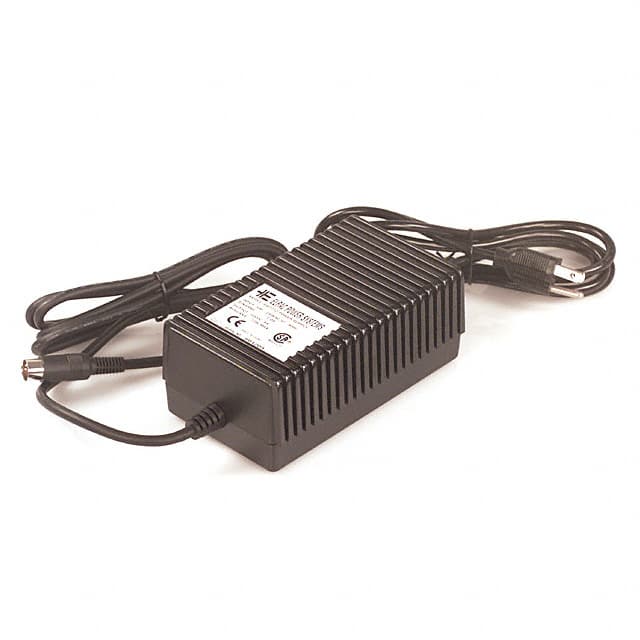

FW7212-D5 The Inventus Power FW7212-D5 is a 72W AC/DC desktop adapter providing a 12VDC output at 6A. It features a standard IEC 320-C14 input and a 5-pin DIN output connector.
Mfr Part #:

FW7212-D5

Mfr Name: Inventus Power
Inventus Power
The Inventus Power FW7212-D5 is a 72W AC/DC desktop adapter providing a 12VDC output at 6A. It features a standard IEC 320-C14 input and a 5-pin DIN output connector.
Stock on Request

FW7212-D5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

FW7212-D5 Description

Short technical summary and product information.

This Inventus Power FW7212-D5 is an AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12VDC output with a maximum current of 6A, providing a total power of 72W. The adapter utilizes a Class I design and accepts a universal input voltage range of 100-240 VAC through an IEC 320-C14 input connector.



The output is delivered via a 5-pin DIN connector. With dimensions of 165.0mm x 98.0mm x 66.0mm, it offers a compact form factor for its power rating. The operating temperature range is from 0°C to 60°C, and it boasts an efficiency of 80%. This adapter is compliant with CE standards and RoHS3 regulations.

FW7212-D5 Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: FW7212-D5 AC/DC Desktop Adapter
Subcategory: AC DC Desktop, Wall Adapter

FW7212-D5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FW7212-D5 Features

  • 72W AC/DC desktop power adapter.
  • 12VDC output at 6A current.
  • IEC 320-C14 input connector.
  • 5-pin DIN output connector.
  • 0°C to 60°C operating temperature range.

FW7212-D5 Applications

  • Provides power for commercial ITE equipment.
  • Ideal for desktop peripheral power supply.
  • Used in networking hardware power applications.
  • Suitable for test and measurement equipment.
  • Supports industrial control system power needs.

FW7212-D5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the FW7212-D5?

The input voltage range is 100-240 VAC.

What output voltage and current does the FW7212-D5 provide?

It provides 12 VDC at 6 A.

What is the power rating of the FW7212-D5?

The power rating is 72 W.

What is the efficiency of the FW7212-D5?

The efficiency is 80%.

What is the operating temperature range of the FW7212-D5?

The operating temperature range is 0°C to 60°C.

What are the dimensions of the FW7212-D5?

The dimensions are 165.0mm x 98.0mm x 66.0mm.

What connectors does the FW7212-D5 use?

It uses an IEC 320-C14 input connector and a DIN 5-pin output connector.
