| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

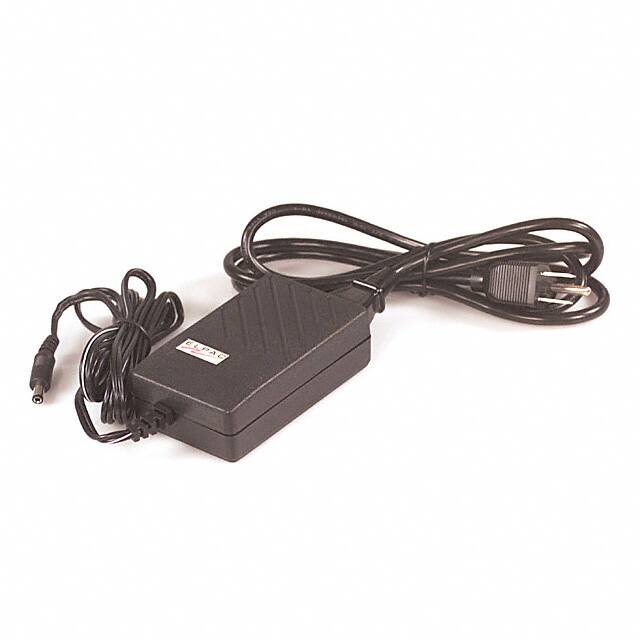

The Inventus Power FW3024-760-NC is a versatile AC/DC desktop adapter designed for ITE (Commercial) applications. This unit delivers a stable 24VDC output with a maximum current of 1.25A, providing a total power of 30W. It features an efficiency rating of 80% and operates internationally.
The adapter has physical dimensions of 108.0mm in length, 64.5mm in width, and 33.0mm in height. It utilizes an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The operating temperature range is from 0°C to 60°C.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. The adapter is classified as Desktop (Class I) and is suitable for international use.
The input voltage range is 100 to 240 VAC.
The output voltage is 24 VDC.
The power rating is 30W.
The efficiency is 80%.
The operating temperature range is 0°C to 60°C.
The form factor is Desktop (Class I).
The output connector is a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions, positive center polarization.
