| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

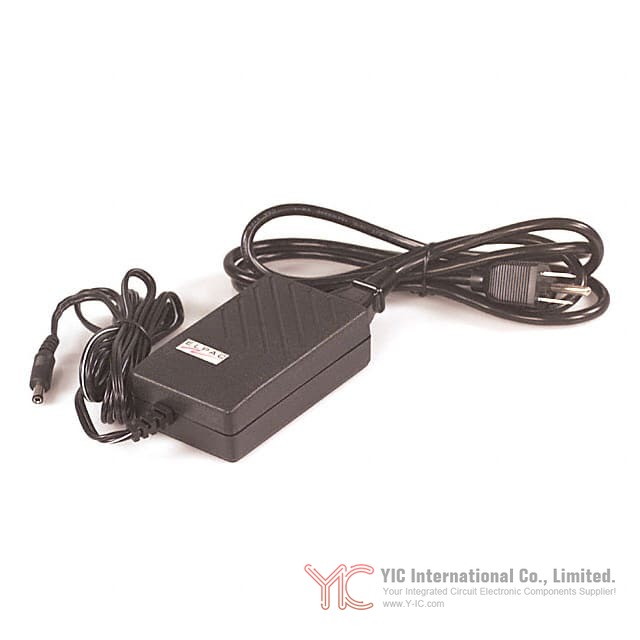

The Inventus Power FW3024-760 is an AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 1.25A, providing a total power of 30W.
This adapter utilizes an IEC 320-C14 input connector and a common barrel plug output with a 2.5mm inner diameter and 5.5mm outer diameter, featuring positive center polarization. Its physical dimensions are 108.0mm in length, 64.5mm in width, and 33.0mm in height.
The operating temperature range for this unit is from 0°C to 60°C, and it boasts an efficiency of 80%. It is designed for use in North America and is classified as a Desktop (Class I) adapter.
Compliance information indicates RoHS3 compliance, an MSL of 1 Unlimited, and REACH unaffected status, though these are based on existing database information and should be reviewed.
100-240VAC.
24V at 1.25A (30W).
0°C to 60°C.
Desktop (Class I) with IEC 320-C14 input and barrel plug output (2.5mm I.D. x 5.5mm O.D.).
80%.
Positive center.
ITE (Commercial) for North America.
