| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

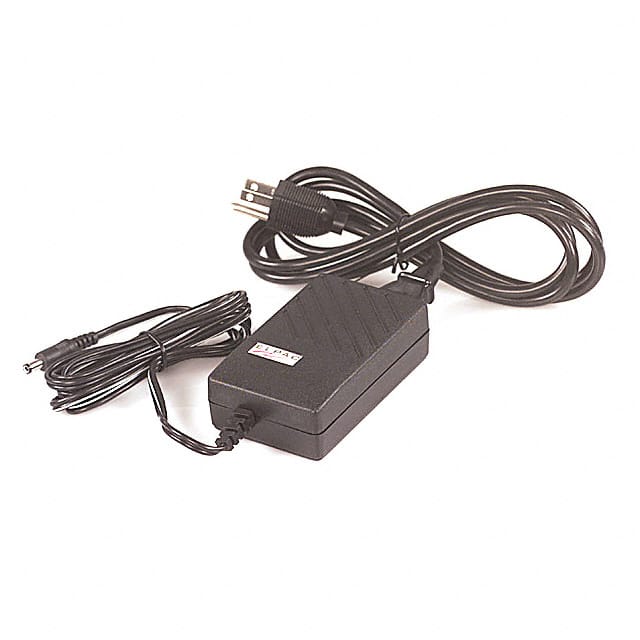

The Inventus Power FW3012-760-NC is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 2.5A, providing a total power of 30W.
This adapter boasts an efficiency of 80% and features an IEC 320-C14 input connector, making it suitable for international use. The output is a standard barrel plug with positive center polarization, measuring 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
With dimensions of 108.0mm x 64.5mm x 33.0mm, it is designed for desktop use. The operating temperature range is from 0°C to 60°C, ensuring reliable performance in various environments. The input type requires a cord, which is sold separately.
This power supply is classified as Desktop (Class I) and is compliant with RoHS3 standards. It operates within the MSL 1 specification.
12V DC.
30W.
2.5A.
0°C to 60°C.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
IEC 320-C14.
Desktop (Class I).
