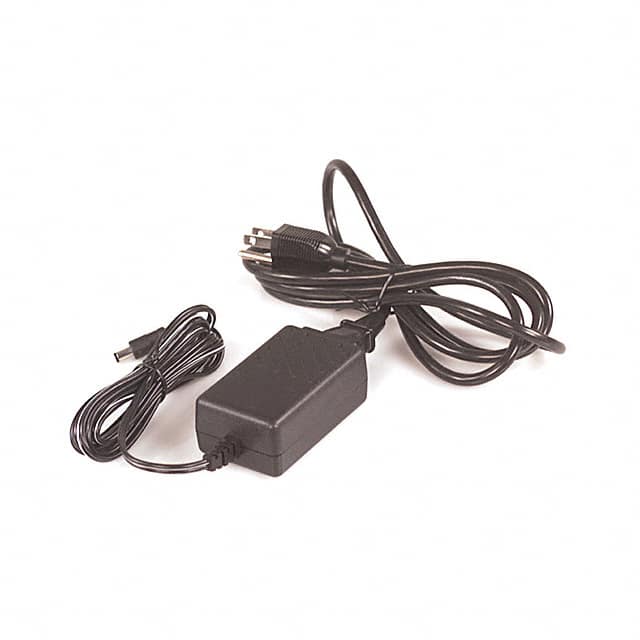

This Inventus Power FW1824-760-NC is an 18 Watt AC/DC desktop power adapter designed for international use. It delivers a stable 24VDC output with a maximum current of 750mA.
The adapter accepts a wide input voltage range of 100-240 VAC and operates at a frequency of 47-63 Hz. It features an IEC 320-C14 input connector, with the AC cord sold separately. The output is fully regulated with built-in over-voltage, over-current, and short-circuit protection.
Key electrical specifications include a nominal efficiency of 80% at full load and 115 VAC. Line regulation is typically +/- 1%, and load regulation is typically +/- 5%. The operating temperature range is 0°C to 40°C.
The unit is housed in a desktop form factor (Class I) with dimensions of 85.0mm x 50.0mm x 33.0mm and weighs 0.7 lbs. It meets FCC Class B and CISPR 22 Class B EMI standards.
The FW1824-760-NC provides a 24VDC output at 750mA.
This adapter accepts a wide input voltage range of 100 - 240 VAC.
The input connector is an IEC 320-C14 receptacle.
The operating temperature range is 0°C to 40°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The adapter has a nominal efficiency of 80% at full load and 115 VAC.
