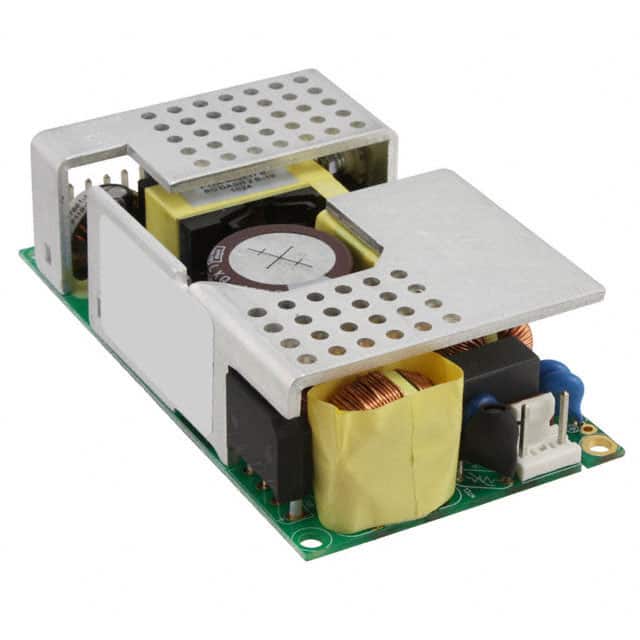

The FVA100018A from Inventus Power is a 100W open frame AC/DC power supply designed for ITE (Commercial) applications. It delivers a stable 18V output at 5.6A, with a peak current capability of 6.7A.
This power supply boasts high efficiency, rated at 89% typical, and includes Power Factor Correction (PFC) for improved performance. It operates with a universal input voltage range of 85-264VAC and features protections such as Over Voltage, Over Temperature, Over Current, and Short Circuit.
The unit is chassis mountable and has dimensions of 4.50" L x 2.50" W x 1.22" H (114.0mm x 63.5mm x 30.9mm). It is designed for natural convection cooling at 100W and can reach 120W with forced air. The MTBF is demonstrated at over 200,000 hours.
The input voltage range is 85-264VAC (100-240VAC nominal) at 47-63Hz.
It is an open frame converter designed for chassis mount.
The operating temperature range is 0°C to 70°C, with full load up to 50°C and linear derating to 50% load at 70°C.
It provides 18V output at 5.6A continuous, with a peak current capability of 6.7A.
Protections include over voltage (110-135%), over current (120-180%), over temperature (active recoverable plus passive non-recoverable), and short circuit (shutdown with auto-restart hiccup mode).
Typical efficiency is 89%, with average efficiency of 88.6% at 115VAC and 89.5% at 230VAC.
Dimensions are 114.0mm (4.50") length, 63.5mm (2.50") width, and 30.9mm (1.22") height. Weight is 0.30kg (0.66 lbs).
