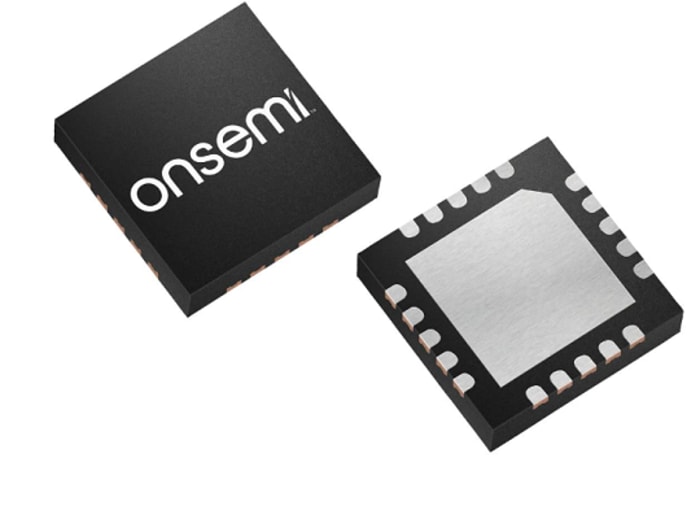

FUSB3307D90B0AFMNWTWG The On Semiconductor FUSB3307D90B0AFMNWTWG is a USB Power Delivery 3.0 adaptive source charging controller. It supports Type-C 2.0 and Programmable Power Supplies (PPS).
Mfr Part #:

FUSB3307D90B0AFMNWTWG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FUSB3307D90B0AFMNWTWG is a USB Power Delivery 3.0 adaptive source charging controller. It supports Type-C 2.0 and Programmable Power Supplies (PPS).
✓ Total Stock: 5,677 pcs

FUSB3307D90B0AFMNWTWG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
5,677 pcs
On Request
5677 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FUSB3307D90B0AFMNWTWG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
ESD Protection
Function
Interface
Operating Temperature
Protocol
Standards
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

FUSB3307D90B0AFMNWTWG Description

Short technical summary and product information.

The FUSB3307D90B0AFMNWTWG from On Semiconductor is a highly integrated USB Power Delivery (PD) power source controller. It implements the Source finite state machines of USB Power Delivery 3.0 (PD 3.0) and Type-C™ specifications, including Programmable Power Supplies (PPS). This controller supports an output voltage range from a minimum of 3.3 V to a maximum of 21 V, with integrated Constant Voltage (CV) and Constant Current Limit (CL) regulation.



Key features include compliance with PD 3.0 v2.0 and Type-C 2.0, a small 5 mΩ current sensing resistor for high efficiency, and a gate driver for N-Channel MOSFETs. It offers robust protection mechanisms such as UVP, OVP, OCP, CC_OVP, VCONN_OCP, and OTP. The device is available in a 20-pin QFN package.



This controller is suitable for applications like wall chargers for tablet PCs and laptop batteries, AC-DC PD 3.0 compliant adapters, and DC-DC car chargers requiring individual port power control.

FUSB3307D90B0AFMNWTWG Quick Information

Product Type: USB Controller
Canonical Name: FUSB3307 USB Power Delivery 3.0 Adaptive Source Charging Controller
Subcategory: Interface Controllers

FUSB3307D90B0AFMNWTWG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FUSB3307D90B0AFMNWTWG Features

  • USB Power Delivery 3.0 and Type-C 2.0 compliant.
  • Supports 3.3V to 21V output voltage control.
  • Integrated Constant Voltage and Current Limit regulation.
  • Includes N-Channel MOSFET gate driver.
  • Features multiple protection circuits.

FUSB3307D90B0AFMNWTWG Applications

  • Ideal for USB-C wall chargers.
  • Suitable for laptop battery charging.
  • Used in AC-DC PD 3.0 adapters.
  • Applicable for DC-DC car chargers.

FUSB3307D90B0AFMNWTWG FAQs

6 frequently asked questions generated from this part’s specifications.
What USB Power Delivery and Type-C specifications does the FUSB3307D90B0AFMNWTWG support?

The FUSB3307D90B0AFMNWTWG supports USB Power Delivery 3.0 v2.0 and Type-C 2.0.

What is the output voltage range for the FUSB3307D90B0AFMNWTWG?

The controller supports a minimum output voltage of 3.3 V and a maximum of 21 V.

What type of regulation does the FUSB3307D90B0AFMNWTWG offer?

It offers Constant Voltage (CV) and Constant Current Limit (CL) regulation.

What are the operating temperature limits for this USB controller?

The operating temperature range is -40°C to 85°C (TA).

What package is the FUSB3307D90B0AFMNWTWG available in?

It is available in a 20-VFQFN Exposed Pad package, also referred to as 20-QFN (4x4).

What is the supply voltage range for the FUSB3307D90B0AFMNWTWG?

The device operates within a supply voltage range of 4.75V to 5.5V.
