FUSB302B10MPX The On Semiconductor FUSB302B10MPX is a programmable USB Type-C controller with Power Delivery support. It offers dual-role functionality and integrates the physical layer for USB BMC power delivery.
Mfr Part #:

FUSB302B10MPX

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FUSB302B10MPX is a programmable USB Type-C controller with Power Delivery support. It offers dual-role functionality and integrates the physical layer for USB BMC power delivery.
✓ Total Stock: 28,000 pcs

FUSB302B10MPX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
27,000 pcs
On Request
27000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FUSB302B10MPX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Lead Spacing
Operating Temperature
Protocol
Standards
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

FUSB302B10MPX Description

Short technical summary and product information.

The FUSB302B10MPX from ON Semiconductor is a programmable USB Type-C controller designed for implementing DRP/SRC/SNK USB Type-C connectors with a low level of programmability. This controller enables essential USB Type-C detection features, including attach and orientation.



It integrates the physical layer of the USB BMC power delivery protocol, supporting up to 100W of power and role swapping. The device fully supports alternative interfaces as defined by the Type-C specification. Key features include dual-role functionality with autonomous DRP toggle, allowing connection as either a host or a device. It supports full Type-C 1.2, including attach/detach detection, current capability indication, audio adapter accessory mode, debug accessory mode, and active cable detection.



The FUSB302B10MPX operates at 3.3V and 5V, with a typical current consumption of 25μA in low power mode. It supports USB 2.0 and features an I²C interface for control. The controller is AEC-Q100 Automotive Qualified for Temperature Grade 2, operating from -40°C to +85°C.

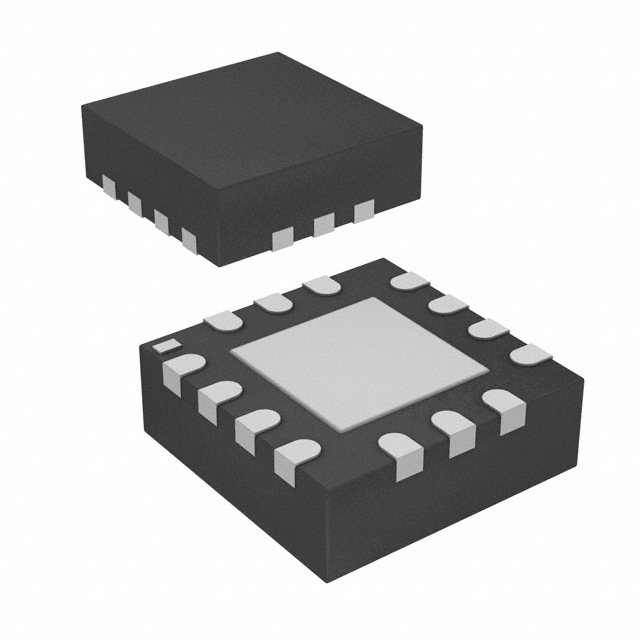

This controller is available in a 14-lead WQFN (2.5x2.5 mm) package, also referred to as 14-lead MLP. It is suitable for applications such as smartphones, tablets, laptops, power adapters, and automotive systems.

FUSB302B10MPX Quick Information

Product Type: USB Type-C Controller
Series: FUSB302B
Canonical Name: FUSB302B Programmable USB Type-C Controller w/PD
Subcategory: Interface Controllers

FUSB302B10MPX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FUSB302B10MPX Features

  • Programmable USB Type-C controller with PD
  • Dual-role functionality with DRP toggle
  • Full Type-C 1.2 and PD 2.0 support
  • Low power operation at 25μA typical
  • AEC-Q100 Grade 2 automotive qualified

FUSB302B10MPX Applications

  • Ideal for smartphones and tablets
  • Suitable for laptop and notebook designs
  • Used in power adapter applications
  • Applicable in camera systems
  • Supports automotive applications

FUSB302B10MPX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the FUSB302B10MPX?

The operating temperature range is -40°C to 85°C.

What voltage levels does the FUSB302B10MPX support?

It supports 3.3V and 5V voltage levels.

What is the current rating for this USB Type-C controller?

The current rating is 560mA.

What USB standards does the FUSB302B10MPX comply with?

It complies with USB 2.0 standards.

What interface does the FUSB302B10MPX use for control?

It uses an I²C interface.

Does the FUSB302B10MPX support USB Power Delivery?

Yes, it supports USB Power Delivery (PD) 2.0, Version 1.2.

Is the FUSB302B10MPX suitable for automotive applications?

Yes, it is AEC-Q100 Automotive Qualified for Temperature Grade 2.
