FUSB301ATMX The On Semiconductor FUSB301ATMX is an autonomous USB Type-C controller supporting versions 1.1 and 1.0. It operates from a 3.0V to 5.5V supply and features an I2C/USB interface.
Mfr Part #:

FUSB301ATMX

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FUSB301ATMX is an autonomous USB Type-C controller supporting versions 1.1 and 1.0. It operates from a 3.0V to 5.5V supply and features an I2C/USB interface.
✓ Total Stock: 356 pcs

FUSB301ATMX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
356 pcs
On Request
356 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FUSB301ATMX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESD Protection
Function
Interface
Mounting Type
Operating Temperature
Operating Voltage
Protocol
Supplier Device Package
Supplier Package
Supply Voltage
Voltage
View Similar Products (0)

FUSB301ATMX Description

Short technical summary and product information.

The FUSB301ATMX from On Semiconductor is a fully autonomous USB Type-C controller designed for applications requiring up to 15W. It supports Type-C versions 1.1 and 1.0, offering CC logic detection for Source Mode, Sink Mode, and DRP. The controller also provides accessory detection and dead battery support.



Key electrical specifications include an operating voltage range of 3.0V to 5.5V, with low power consumption in both disable (2.0 μA max.) and standby (7.0 μA max.) modes. The device features an I2C interface with a configurable address, allowing for multiple ports per system. It also includes 2 kV HBM ESD protection.

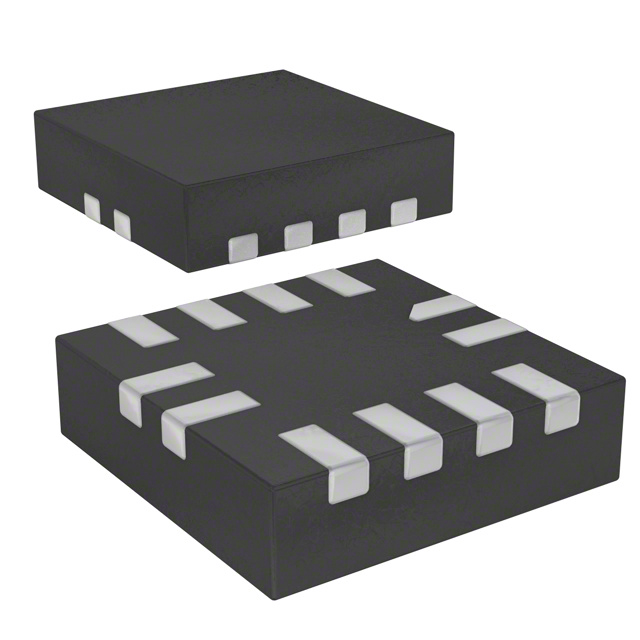

Packaged in a compact 12-lead TMLP (1.6 mm x 1.6 mm x 0.375 mm), the FUSB301ATMX is suitable for ultra-portable applications such as smartphones, tablets, and notebooks. The operating temperature range is -40°C to 85°C.

FUSB301ATMX Quick Information

Product Type: USB Type-C Controller
Canonical Name: FUSB301ATMX Autonomous USB Type-C Controller
Subcategory: Interface Controller

FUSB301ATMX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FUSB301ATMX Features

  • Fully autonomous Type-C controller.
  • Supports Type-C versions 1.1 and 1.0.
  • Configurable I2C address for multi-port systems.
  • Low power disable and standby modes.
  • Compact 12-lead TMLP package.

FUSB301ATMX Applications

  • Ideal for smartphones and tablets.
  • Suitable for notebook computers.
  • Used in ultra-portable applications.
  • Supports <15 W power applications.

FUSB301ATMX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the FUSB301ATMX?

The operating voltage range is 3.0 V to 5.5 V.

What is the operating temperature range for the FUSB301ATMX?

The operating temperature range is -40°C to 85°C.

What package type is the FUSB301ATMX available in?

The FUSB301ATMX is available in a 12-lead TMLP package measuring 1.6 mm x 1.6 mm x 0.375 mm.

What is the RoHS status of the FUSB301ATMX?

The FUSB301ATMX is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the FUSB301ATMX?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
