| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

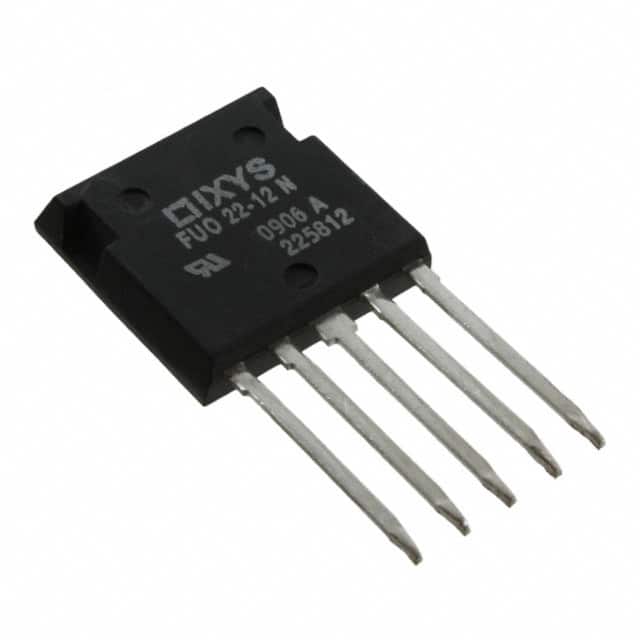

The FUO22-12N is a three phase bridge rectifier diode module from IXYS. It features a peak repetitive reverse voltage of 1.2 kV and an average rectified current of 28 A. The device uses standard diode technology and is designed for through-hole mounting.
This rectifier is suitable for AC to DC conversion in three-phase power systems. The i4-PAC-5 package with ISOPLUS i4-PAC supplier device package provides robust thermal performance. The operating junction temperature range is -55°C to 175°C, enabling use in demanding environments.
With a three-phase diode configuration, the FUO22-12N can be used in bridge rectifier circuits for industrial power supplies, motor drives, and other high-power applications. The through-hole mounting facilitates secure attachment to PCBs or heatsinks.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.64 | $23.64 |
| 10+ | $16.16 | $16.16 |
| 100+ | $14.10 | $14.10 |
| 500+ | $14.00 | $14.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak repetitive reverse voltage is 1.2 kV.
The average rectified current is 28 A. Note: an alternate specification gives 10 A at 1200 V, so the rating may vary with conditions.
It uses an i4-Pac-5 through-hole package, with a supplier device package of ISOPLUS i4-PAC.
It is a three phase bridge rectifier.
The operating junction temperature range is -55°C to 175°C.
It requires through-hole mounting.
RoHS3 compliance is indicated but unverified. The data is low confidence.
