| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,387 pcs
|
3387 pcs | On Request | 1 | On Request | On Request | 1411+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method | |
| Termination Style |

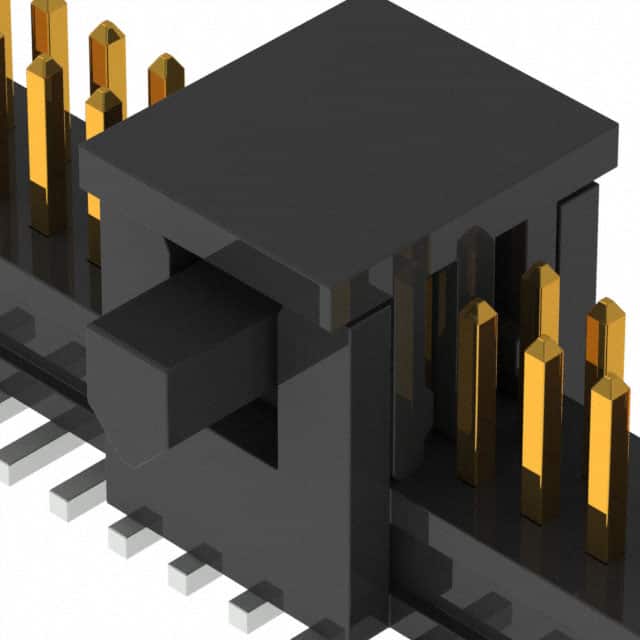

The Samtec FTSH-125-01-L-DV-K-P-TR is a 50-position, 2-row, 1.27mm pitch surface mount shrouded header from the FTSH series. It features male square pins with a gold contact finish (10µin gold on contact area, tin on tail) and phosphor bronze contact material. The connector is rated for 3.4A per contact and operates over a temperature range of -55°C to 125°C. It is designed for board-to-board or cable-to-board applications requiring high density and reliable connections.
This header includes a keying shroud for polarization and a pick-and-place pad for automated assembly. The insulation is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector is surface mount with solder termination, and the contact length is 3.05mm. The manufacturer specifies a data rate capability of up to 8 Gbps, suitable for high-speed signal transmission.
Packaging is Tape & Reel with a standard quantity of 450 pieces per reel. The FTSH series is highly configurable, but this specific variant is a vertical surface mount header with a 0.120" post length.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.14 | $7.14 |
| 10+ | $6.85 | $6.85 |
| 100+ | $5.85 | $5.85 |
| 250+ | $5.84 | $5.84 |
| 450+ | $4.79 | $4.79 |
| 900+ | $4.78 | $4.78 |
| 1,800+ | $4.64 | $4.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions, arranged in 2 rows, all loaded.
1.27mm (0.050").
3.4A per contact.
Surface mount (SMD) with solder termination.
-55°C to 125°C.
Gold on contact area (10µin) with tin tail.
Up to 8 Gbps per the manufacturer.
