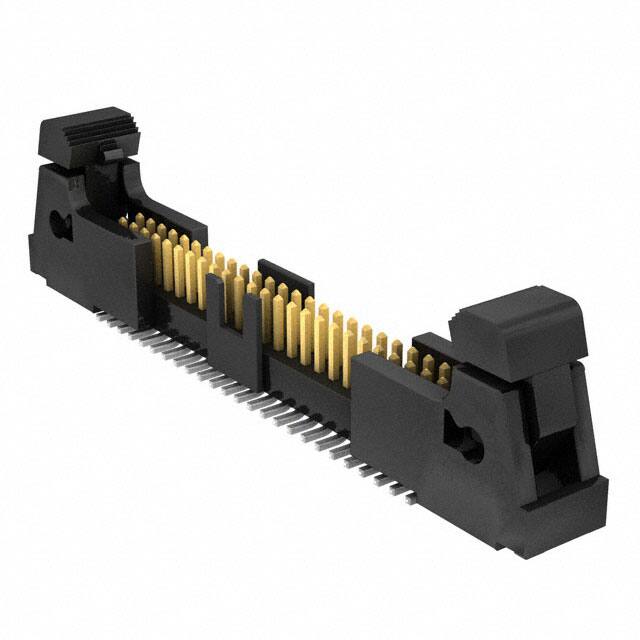

The Samtec FTSH-125-01-L-DV-EJ-K is a 50 position, 2-row, 1.27mm pitch surface mount shrouded header from the FTSH series. It features a double vertical orientation with ejector shroud and keying shroud for secure mating with FFSD series cables. The connector uses phosphor bronze contacts with 10 µ" gold plating on the post and matte tin on the tail, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0.
This header is rated for 3.4A per contact (2 pins powered) and operates over a temperature range of -55°C to 125°C. The contact length is 3.05mm (0.120") post, and the insulation height is 2.51mm (0.099"). It is designed for board-to-board or cable applications and supports up to 8 Gbps performance. The part is lead-free solderable and meets MIL-DTL-55302 testing requirements.
Packaging is tube with a standard quantity of 11 pieces. The surface mount termination enables automated assembly, and the shrouded design with latch lock/eject hooks provides reliable retention in high-vibration environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.30 | $7.30 |
| 11+ | $7.29 | $7.29 |
| 22+ | $7.07 | $7.07 |
| 110+ | $6.18 | $6.18 |
| 253+ | $6.17 | $6.17 |
| 506+ | $5.27 | $5.27 |
| 1,001+ | $4.61 | $4.61 |
| 2,002+ | $4.60 | $4.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions, all loaded, in 2 rows.
1.27mm (0.050") pitch with 0.050" (1.27mm) row spacing.
3.4A per contact (2 pins powered).
Surface mount with solder termination.
-55°C to 125°C.
10 µ" gold on the post and matte tin on the tail, over 50 µ" nickel.
Yes, it is shrouded with latch lock/eject hooks and includes end shrouds and a keying shroud.
