Mfr Part #:

FTSH-125-01-L-DV-EJ

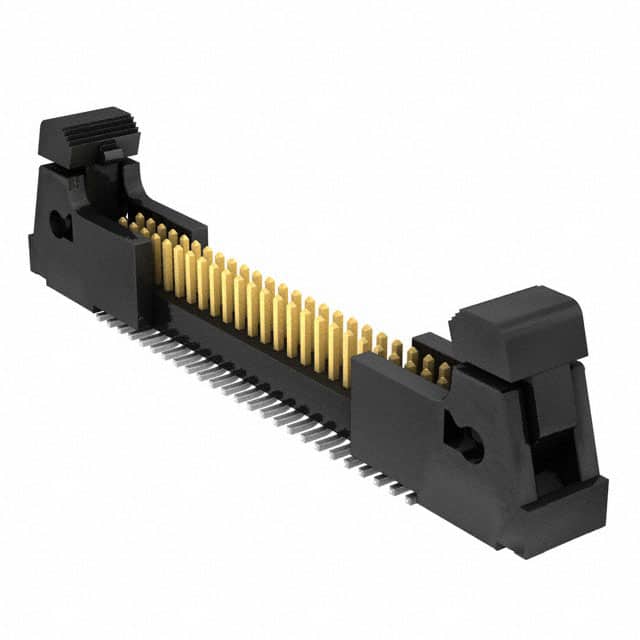

Samtec FTSH-125-01-L-DV-EJ is a 50-position, 2-row, 1.27mm pitch shrouded male pin header for surface mount applications. It features latch lock/eject hooks and gold contact finish on post.

✓ Total Stock: 45 pcs

$ Price Range: $4.36 - $6.52

FTSH-125-01-L-DV-EJ Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	45 pcs On Request	45 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FTSH-125-01-L-DV-EJ Description

Short technical summary and product information.

The FTSH-125-01-L-DV-EJ is a high-density shrouded header from Samtec's FTSH series. It offers 50 positions arranged in 2 rows with a 1.27mm pitch, making it suitable for board-to-board or cable connections. The header features a surface mount termination with solder tails, and the contact post is plated with 10 µinch gold over nickel, while the tail is matte tin finish. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0. Electrical rating is 3.4A per contact with an operating temperature range of -55°C to +125°C. The device includes latch lock/eject hooks for secure mating and end shrouds for protection. The -DV tail option indicates double vertical orientation. This part is designed for applications requiring reliable interconnection in compact spaces.

FTSH-125-01-L-DV-EJ Quick Information

Product Type: Male Pin Header

Series: FTSH

Canonical Name: Samtec FTSH-125-01-L-DV-EJ 50-Position Shrouded Header, 1.27mm Pitch, SMD

Subcategory: Shrouded Header

FTSH-125-01-L-DV-EJ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

Lead Free: Yes

FTSH-125-01-L-DV-EJ Estimated Pricing

Qty	Low	High
1+	$6.52	$6.52
11+	$6.51	$6.51
22+	$6.31	$6.31
110+	$5.40	$5.40
253+	$5.37	$5.37
506+	$4.70	$4.70
1,001+	$4.36	$4.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-125-01-L-DV-EJ Features

50-position, 2-row, 1.27mm pitch design.
Shrouded header with latch lock/eject hooks.
Gold contact finish on post for reliability.
Surface mount termination for SMD assembly.
Rated 3.4A per contact at 125°C.

FTSH-125-01-L-DV-EJ Applications

Used in board-to-board and cable interconnections.
Ideal for high-density packaging in compact electronics.
Suitable for industrial control and automation systems.
Applied in data communication and networking equipment.

FTSH-125-01-L-DV-EJ FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the FTSH-125-01-L-DV-EJ have?

50 positions arranged in 2 rows.

What is the pitch of this header?

1.27mm (0.050") pitch.

What is the current rating per contact?

3.4A per contact (2 pins powered).

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold on post (10 µinch) and matte tin on tail.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.05mm (0.120")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Latch Lock/Eject Hooks
Features	End Shrouds
Halogen Free	Yes
Insulation Color	Black
Insulation Height	2.51mm (0.099")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	Smd
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
SVHC Present	Not Present
Shrouding	Shrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
