| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | 2014 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

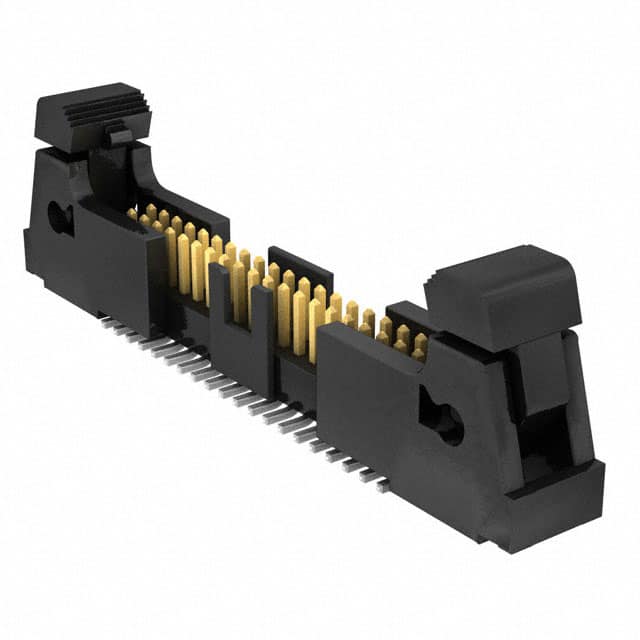

The FTSH-120-01-L-DV-EJ-K is a 40-position, 2-row shrouded male pin header from Samtec's FTSH series. It features a 1.27mm pitch and 1.27mm row spacing, making it suitable for high-density board-to-board or cable interconnections. The connector is surface mount with solder termination.
Key specifications include a current rating of 3.4A per contact (2 pins powered), operating temperature range of -55°C to 125°C, and UL94 V-0 flammability rating. The contact material is phosphor bronze with gold plating on the mating area and matte tin on the tails. The insulator is black liquid crystal polymer (LCP).
Design features include a shrouded housing with latch lock/eject hooks (EJ option) and a keying shroud (K option) to ensure proper mating orientation. The header is cuttable, allowing customization. It is designed for use with Samtec's FFSD series or other compatible cable assemblies.
The component is lead-free solderable and RoHS compliant (unverified). It is available in tape and reel packaging for automated assembly. The header is suitable for applications requiring reliable, high-density interconnects in industrial, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.52 | $6.52 |
| 10+ | $6.12 | $6.12 |
| 26+ | $5.69 | $5.69 |
| 52+ | $5.35 | $5.35 |
| 104+ | $5.26 | $5.26 |
| 260+ | $4.68 | $4.68 |
| 507+ | $4.33 | $4.33 |
| 1,001+ | $3.97 | $3.97 |
| 2,002+ | $3.82 | $3.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions arranged in 2 rows.
1.27mm (0.050")
3.4A per contact (2 pins powered).
Surface mount with solder termination.
-55°C to 125°C.
Yes, it features latch lock/eject hooks.
Black liquid crystal polymer (LCP) with UL94 V-0 rating.
