Mfr Part #:

FTSH-117-01-L-DV-EJ-K

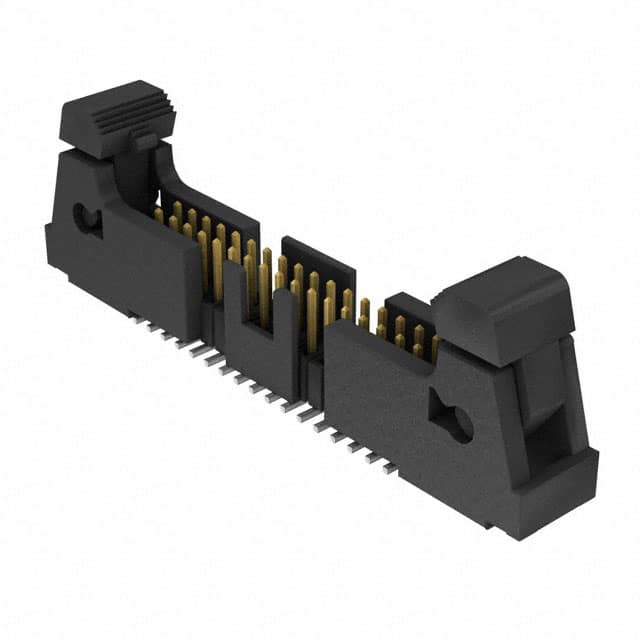

Samtec FTSH-117-01-L-DV-EJ-K is a 34-position, 2-row, 1.27mm pitch surface mount header with male pins, shrouded, and features an ejector shroud and keying shroud.

✓ Total Stock: 26 pcs

$ Price Range: $3.68 - $6.00

FTSH-117-01-L-DV-EJ-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	26 pcs On Request	26 pcs	On Request	1	On Request	On Request	2014	On Request	On Request

FTSH-117-01-L-DV-EJ-K Description

Short technical summary and product information.

The Samtec FTSH-117-01-L-DV-EJ-K is a 34-position, 2-row, 1.27mm pitch surface mount header from the FTSH series. It features male square pins with a tin contact finish over a phosphor bronze base. The connector is shrouded and includes an ejector shroud and keying shroud for secure mating and polarization.

This header is designed for board-to-board or cable applications. It has a current rating of 3.4A per contact and an operating temperature range of -55°C to +125°C. The insulation is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.

The component is surface mount with solder termination. The contact length is 3.05mm (0.120") and the insulation height is 2.51mm (0.099"). It is lead-free solderable.

FTSH-117-01-L-DV-EJ-K Quick Information

Product Type: Header, Male Pins

Series: FTSH

Canonical Name: Samtec FTSH-117-01-L-DV-EJ-K Header, Male Pins, 34 Position, 1.27mm Pitch, Surface Mount

Subcategory: Male Pins

FTSH-117-01-L-DV-EJ-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable: Yes

FTSH-117-01-L-DV-EJ-K Estimated Pricing

Qty	Low	High
1+	$6.00	$6.00
10+	$5.63	$5.63
105+	$4.90	$4.90
510+	$4.25	$4.25
1,005+	$3.70	$3.70
2,010+	$3.68	$3.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-117-01-L-DV-EJ-K Features

34 positions in a 2-row configuration.
1.27mm (0.050") pitch for compact designs.
Shrouded with ejector and keying shrouds.
Rated for 3.4A per contact operation.
Surface mount with solder termination.

FTSH-117-01-L-DV-EJ-K Applications

Board-to-board interconnections in compact electronics.
Cable-to-board applications requiring secure mating.
Applications needing polarized and keyed connectors.
High-density signal routing in industrial systems.

FTSH-117-01-L-DV-EJ-K FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the FTSH-117-01-L-DV-EJ-K have?

It has 34 positions.

What is the pitch of this header?

The pitch is 1.27mm (0.050").

What is the current rating per contact?

The current rating is 3.4A per contact.

What is the mounting type for this connector?

It is a surface mount connector.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish?

The contact finish is tin.

Is this component lead-free solderable?

Yes, it is lead-free solderable.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Cuttable
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.05mm (0.120")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Latch Lock/Eject Hooks
Features	End Shrouds, Keying Shroud
Insulation Color	Black
Insulation Height	2.51mm (0.099")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	–01 (3.05 mm) .120" Post (Mates with FFSD)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Shrouding	Shrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
