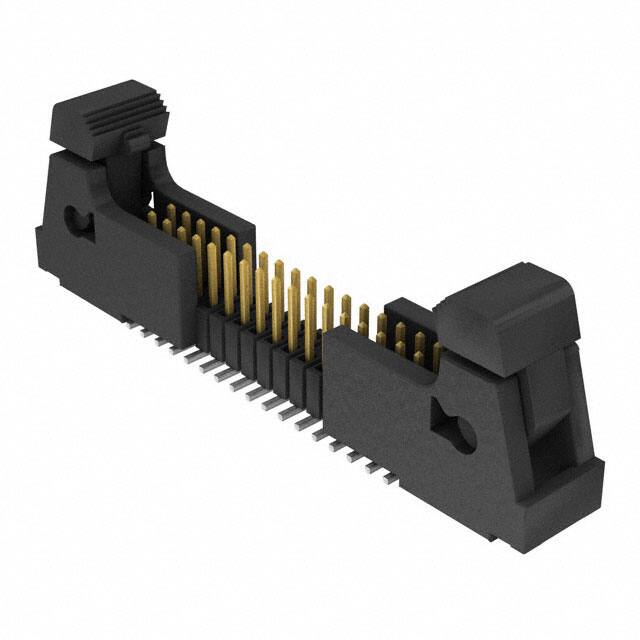

FTSH-117-01-L-DV-EJ Samtec FTSH-117-01-L-DV-EJ is a 34 position, 2 row, 1.27mm pitch surface mount header with male pins and ejector shroud. Rated for 3.4A per contact and operates from -55°C to 125°C.
Mfr Part #:

FTSH-117-01-L-DV-EJ

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec FTSH-117-01-L-DV-EJ is a 34 position, 2 row, 1.27mm pitch surface mount header with male pins and ejector shroud. Rated for 3.4A per contact and operates from -55°C to 125°C.
✓ Total Stock: 2 pcs
$ Price Range: $2.76 - $5.24

FTSH-117-01-L-DV-EJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FTSH-117-01-L-DV-EJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

FTSH-117-01-L-DV-EJ Description

Short technical summary and product information.

The Samtec FTSH-117-01-L-DV-EJ is a 34 position, 2 row, 1.27mm pitch surface mount header from the FTSH series. It features male square pins with a tin contact finish and a contact length of 3.05mm. The connector is shrouded with end shrouds and includes a latch lock/eject hooks fastening type for secure mating.



This header is rated for 3.4A per contact and operates over a temperature range of -55°C to 125°C. The insulator is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The contacts are phosphor bronze with a 10µin tin finish over 50µin nickel.



Designed for board-to-board or cable applications, this connector uses surface mount solder termination. The 1.27mm pitch and row spacing make it suitable for high-density interconnects. The -EJ option indicates an ejector shroud for easy unmating.

FTSH-117-01-L-DV-EJ Quick Information

Product Type: Header, Male Pins
Series: FTSH
Canonical Name: Samtec FTSH-117-01-L-DV-EJ 34 Position 1.27mm Pitch Surface Mount Header, Male Pins
Subcategory: Male Pins

FTSH-117-01-L-DV-EJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FTSH-117-01-L-DV-EJ Estimated Pricing

Qty Low High
1+ $5.24 $5.24
30+ $5.23 $5.23
60+ $4.52 $4.52
105+ $4.26 $4.26
510+ $3.64 $3.64
1,005+ $3.15 $3.15
2,505+ $2.76 $2.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

FTSH-117-01-L-DV-EJ Features

  • 34 position, 2 row, 1.27mm pitch header.
  • Surface mount solder termination.
  • Shrouded with ejector shroud.
  • Rated 3.4A per contact.
  • Operates from -55°C to 125°C.

FTSH-117-01-L-DV-EJ Applications

  • Board-to-board interconnects in compact electronics.
  • Cable-to-board connections requiring secure latching.
  • High-density signal routing in industrial systems.
  • Applications needing reliable surface mount connectors.

FTSH-117-01-L-DV-EJ FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FTSH-117-01-L-DV-EJ have?

34 positions, all loaded, in 2 rows.

What is the pitch of this header?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the current rating per contact?

3.4A per contact (2 pins powered).

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C.

Is the connector shrouded?

Yes, it is shrouded with end shrouds and includes a latch lock/eject hooks fastening type.

What is the contact material and finish?

Phosphor bronze contacts with a 10µin tin finish.
